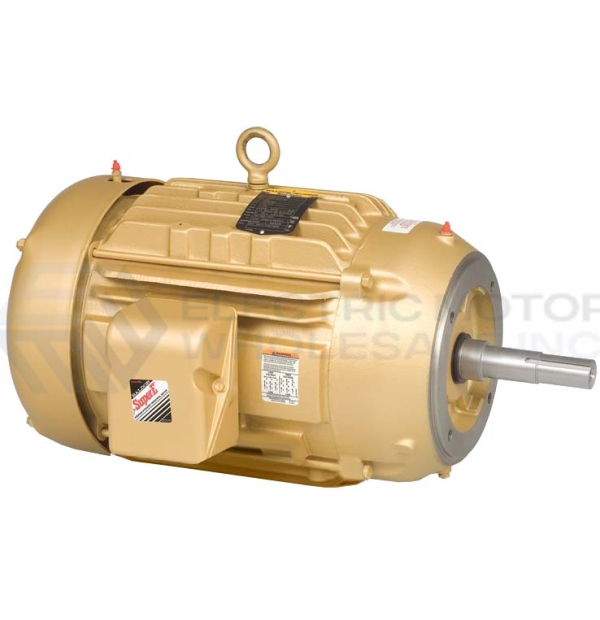

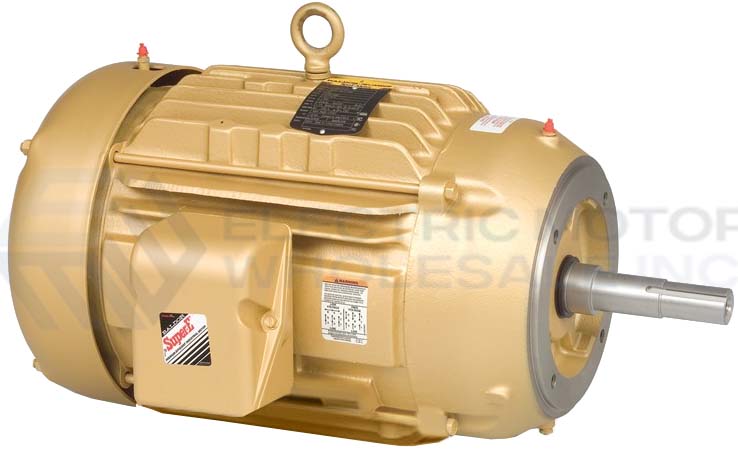

15HP BALDOR 1765RPM 254JM TEFC 3PH SUPER-E PUMP MOTOR VEJMM2333T

15HP BALDOR 1765RPM 254JM TEFC 3PH SUPER-E PUMP MOTOR VEJMM2333T


Part Number:

VEJMM2333T

Model/Spec Number:

09-0000-2977

Manufacturer:

ABB/Baldor
VEJMM2333T BALDOR 15HP Three Phase Close-Coupled Pump Motor is designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $5,429.00

Regular Price

USD

$

3,901

64

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

278 lbs

Dimensions:

24 x 32 x 24 inches

HS Code:

8501524000

UPC:

781568368640

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

15

Output KW:

11.2

Output RPM:

1765

Frame Size NEMA:

254JM

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

230/460//190/380

VEJMM2333T-InfoPacket

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy duty cast iron frame
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
