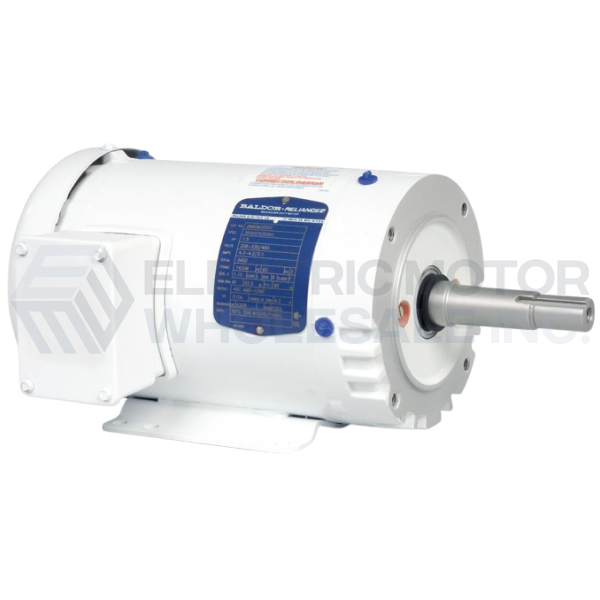

10HP BALDOR 1770RPM 215JM TEFC 3PH SUPER-E WASHDOWN PUMP MOTOR JMEWDM3714T

Part Number:

JMEWDM3714T

Model/Spec Number:

37H883L865G1

Manufacturer:

ABB/Baldor

JMEWDM3714T BALDOR 10HP 3PH SUPER-E EPOXY WASHDOWN PUMP ELECTRIC MOTOR is designed for use with commercial and industrial water pumps, food processing and applications where motor is exposed to high pressure washdown.

MSRP: $4,242.00

Regular Price

USD

$

3,048

58

QTY

Login to View Discounts

Shipping Details

Free No Rush Shipping

Weight:

165 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.52.4000

UPC:

781568773697

Technical Details

Specifications

Brand:	Baldor
Application:	Washdown Epoxy
Output HP:	10
Output KW:	7.5
Output RPM:	1770
Frame Size NEMA:	215JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP55
Voltage:	230/460

Documentation

JMEWDM3714T-InfoPacket.pdf

Additional Information

APPLICATIONS: Designed for use with commercial and industrial water pumps, food processing and applications where motor is exposed to high pressure washdown.

FEATURES:

Over-sized ball bearing with locked drive end construction for minimum shaft movement
Moisture sealant on bolt heads, between frame and endplates
Neoprene gaskets, Forsheda® running contact v-ring
Stainless steel shaft
Electrostatic epoxy coating (Tropicalized)
