1/4HP BALDOR 20RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP7409

1/4HP BALDOR 20RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP7409

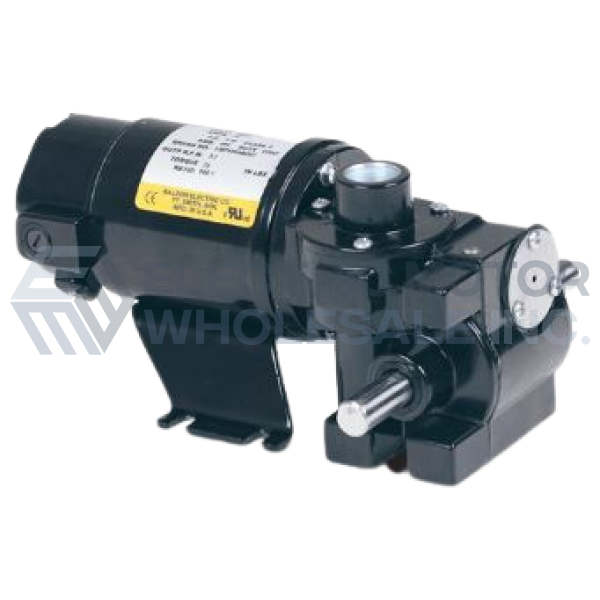

RIGHT ANGLE E STYLE.jpg
Picture is for reference only.

Part Number:

GP7409

Model/Spec Number:

24A403Z156G1

Manufacturer:

Baldor Obsolete Motors
GP7409 BALDOR 1/4HP Right Angle 90VDC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

15 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501312000

UPC:

781568124291

Technical Details

Design:

Right Angle Shaft

Input HP:

1/4

Output KW:

0.186

Output RPM:

20

Gear Ratio:

180:1

Torque Lb-in.:

175

Overhung Load (lb.):

95

Voltage:

90

Full Load Amperage:

1.48

Application:

General Purpose

Product Information Packet

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.

FEATURES:

  • DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
  • Dual 5/8" (.625") Keyed output shafts with flats
  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Reversible
  • Powder-coated enamel finish
  • 3 ft. SJTO cord
