LF-921-25-B5-G BALDOR 25:1 RIGHT ANGLE SPEED REDUCER GLF2521AG
LF-921-25-B5-G BALDOR 25:1 RIGHT ANGLE SPEED REDUCER GLF2521AG

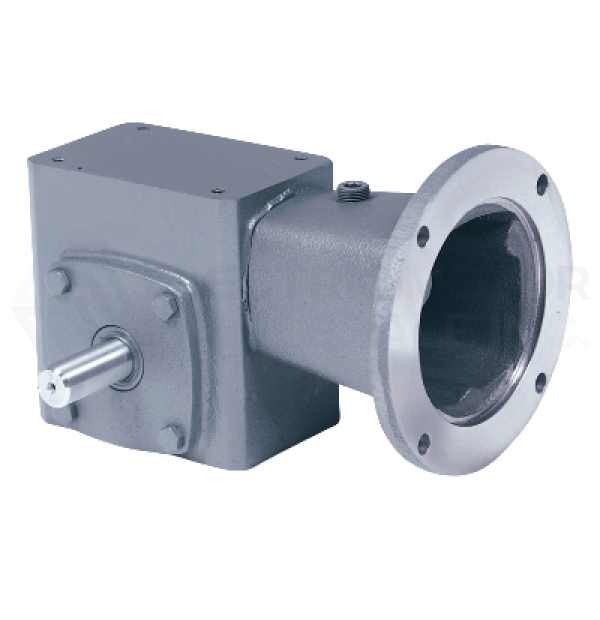

Picture is for reference only.
Part Number:
GLF2521AGManufacturer:
Baldor Obsolete GearManufacturer Part Number:
LF-921-25-B5-GClick below to view suggested functional replacement.
Shipping Details
Weight:
38 lbsDimensions:
14 x 14 x 14 inchesHS Code:
8483.00.0000Technical Details
Specifications
Max Input HP @1750: | 0.95 |
Output RPM @1750: | 70 |
Reduction Ratio: | 25:1 |
Torque (lb-in)@1750rpm: | 675 |
Shaft Center Distance: | 2.06 |
Shaft Center Height: | 2.28 |
Mount Footprint: | 2.88” x 5.00” |
NEMA Input Mounting: | 56C |
Mount Style: | LF |
Series Size: | 921 |
Documentation
Additional Information
APPLICATIONS: Wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.
FEATURES:
- Heavy duty cast iron housings
- Chill cast bronze gears
- Precision ground hardened worm
- Ball bearings on input shaft
- Tapered roller bearings on output shaft
- Industry-standard mounting dimensions
- Pre-filled with food grade (H1) Klubersynth UH1-6-460 synthetic oil
- Sealed housing provides maintenance-free lubed for life operation
