LF-932-20-B9-G BALDOR 20:1 RIGHT ANGLE SPEED REDUCER GLF2032CG
LF-932-20-B9-G BALDOR 20:1 RIGHT ANGLE SPEED REDUCER GLF2032CG

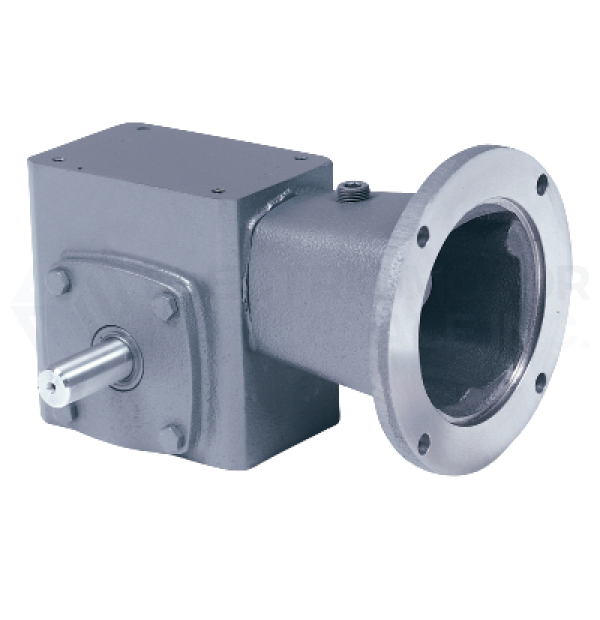

Picture is for reference only.
Part Number:
GLF2032CGManufacturer:
Baldor Obsolete GearManufacturer Part Number:
LF-932-20-B9-GClick below to view suggested functional replacement.
Shipping Details
Weight:
100 lbsDimensions:
14 x 14 x 14 inchesHS Code:
8483.00.0000Technical Details
Specifications
Max Input HP @1750: | 3.85 |
Output RPM @1750: | 88 |
Reduction Ratio: | 20:1 |
Torque (lb-in)@1750rpm: | 2383 |
Shaft Center Distance: | 3.25 |
Shaft Center Height: | 3.50 |
Mount Footprint: | 4.00” x 7.50” |
NEMA Input Mounting: | 182-4TC |
Mount Style: | LF |
Series Size: | 932 |
Documentation
Additional Information
APPLICATIONS: Wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.
FEATURES:
- Heavy duty cast iron housings
- Chill cast bronze gears
- Precision ground hardened worm
- Ball bearings on input shaft
- Tapered roller bearings on output shaft
- Industry-standard mounting dimensions
- Pre-filled with food grade (H1) Klubersynth UH1-6-460 synthetic oil
- Sealed housing provides maintenance-free lubed for life operation
