HF-924-60-B5-H107 BALDOR 60:1 HOLLOW BORE SPEED REDUCER GHF6024AH
HF-924-60-B5-H107 BALDOR 60:1 HOLLOW BORE SPEED REDUCER GHF6024AH

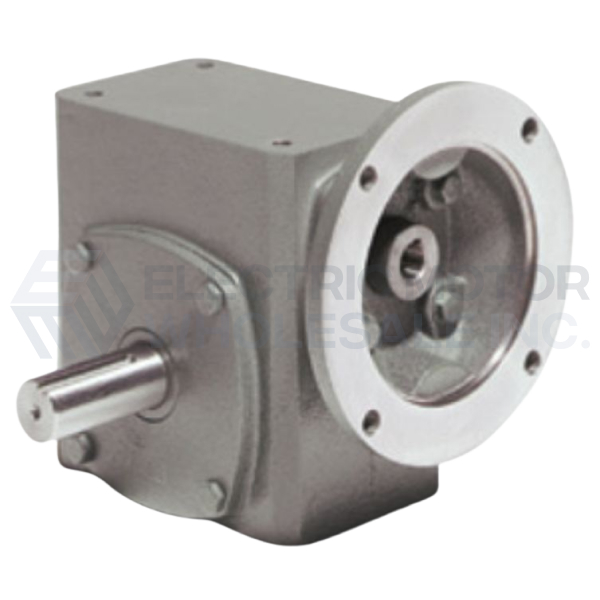

Picture is for reference only.
Part Number:
GHF6024AHManufacturer:
Baldor Obsolete GearManufacturer Part Number:
HF-924-60-B5-H107Click below to view suggested functional replacement.
Shipping Details
Weight:
42 lbsDimensions:
14 x 14 x 14 inchesHS Code:
8483.00.0000Technical Details
Specifications
Max Input HP @1750: | 0.69 |
Output RPM @1750: | 29 |
Reduction Ratio: | 60:1 |
Torque (lb-in)@1750rpm: | 956 |
Shaft Center Distance: | 2.375 |
Shaft Center Height: | 2.50 |
Mount Footprint: | 2.88” x 5.00” |
NEMA Input Mounting: | 56C |
Mount Style: | HF |
Series Size: | 924 |
Documentation
Additional Information
BALDOR 900 SERIES Right Angle Quill Input with Hollow Output Shaft are ideal for conveyors, material handling, textile machines, packaging machinery, etc. (slow speed and high torque).
FEATURES:
- Heavy duty cast iron housings
- Chill cast bronze gears
- Precision ground hardened worm
- Ball bearing on input shaft
- Tapered roller bearing on output shaft
- Industry-standard mounting dimensions
- Pre-filled with food grade (H1) Klubersynth UH1-6-460 synthetic oil
- Sealed housing provides maintenance-free lubed for life operation
Click below to view suggested functional replacement.
