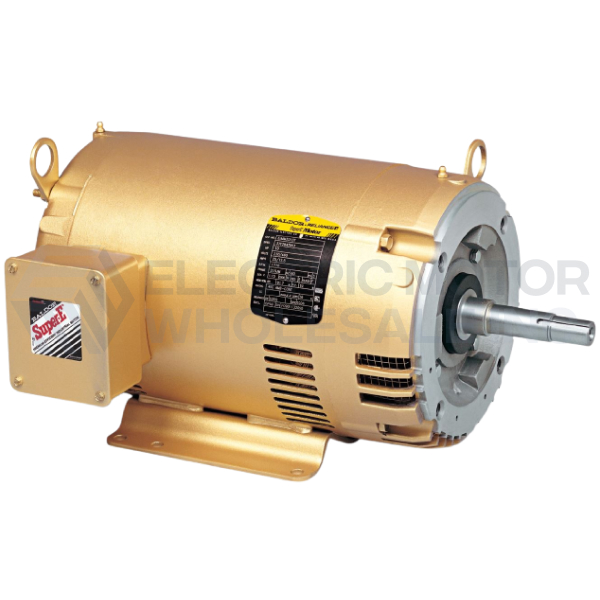

15HP BALDOR 3475RPM 215TCZ OPSB 3PH SUPER-E PUMP MOTOR EWCM3314T

15HP BALDOR 3475RPM 215TCZ OPSB 3PH SUPER-E PUMP MOTOR EWCM3314T


Part Number:

EWCM3314T

Model/Spec Number:

37F978S867G2

Manufacturer:

ABB/Baldor
EWCM3314T BALDOR 15HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $3,860.00

Regular Price

USD

$

2,774

05

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

131 lbs

Dimensions:

20 x 30 x 18 inches

HS Code:

8501524000

UPC:

781568816059

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

15

Output KW:

11

Output RPM:

3475

Frame Size NEMA:

215TCZ

Mount NEMA:

C Face With Base

Enclosure NEMA:

OPSB

Enclosure IEC:

IP23

Voltage:

230/460

EWCM3314T-InfoPacket

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
