1.5HP BALDOR 1165RPM 182T TEFC 3PH SUPER-E MOTOR EM3607T

1.5HP BALDOR 1165RPM 182T TEFC 3PH SUPER-E MOTOR EM3607T

Picture is for reference only.

Part Number:

EM3607T

Model/Spec Number:

36G271S916G2

Manufacturer:

ABB/Baldor
EM3607T BALDOR 1.5HP Three Phase Electric Motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. Super-E Motors are designed to conserve energy over extended time periods.
MSRP: $1,629.00

Regular Price

USD

$

1,170

71

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

73 lbs

Dimensions:

18 x 25 x 18 inches

HS Code:

8501524000

UPC:

781568604380

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

1165

Frame Size NEMA:

182T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

230/460//190/380

EM3607T-InfoPacket

APPLICATIONS: Typical applications include pumps, fans, compressors, blowers, industrial machines, conveyors and other general purpose applications. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2.

FEATURES:

  • Ball bearings
  • 1 1/8" keyed output shaft
  • Heavy gauge steel frame
  • Designed for longevity
Image for 2HP WEG CFW500 SERIES IP20 VFD 230VAC 1&3PH INPUT CFW500B07P3B2DB20G2

2HP WEG CFW500 SERIES IP20 VFD 230VAC 1&3PH INPUT CFW500B07P3B2DB20G2

MSRP: $678.00

Regular Price

$

409

51

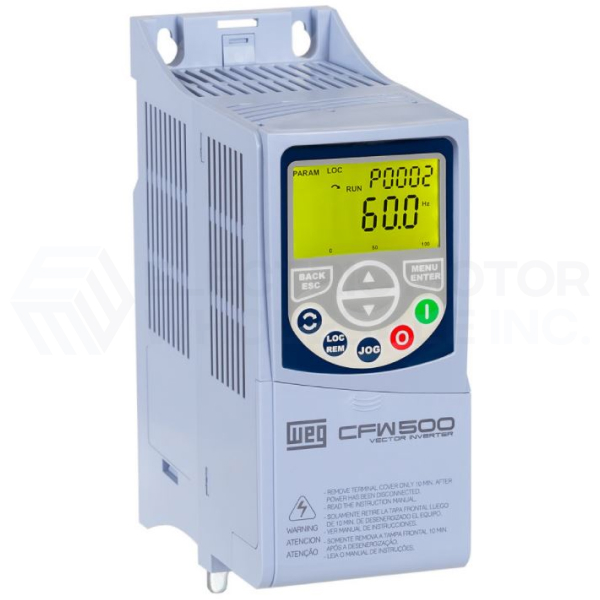

Image for 2HP WEG CFW500 SERIES IP20 VFD 230VAC 3PH INPUT CFW500A07P0T2NB20G2
