EJMM3157T BALDOR 2HP 3PH SUPER-E PUMP MOTOR 35LL509G073G1, 35LL509M496G1

Electric Motors

Three Phase Electric Motors

Baldor Motors Three Phase

Baldor Three Phase Pump Motors

Baldor Three Phase ODP Close-Coupled Pump Motors

2HP BALDOR 1760RPM 145JM OPSB 3PH SUPER-E PUMP MOTOR EJMM3157T

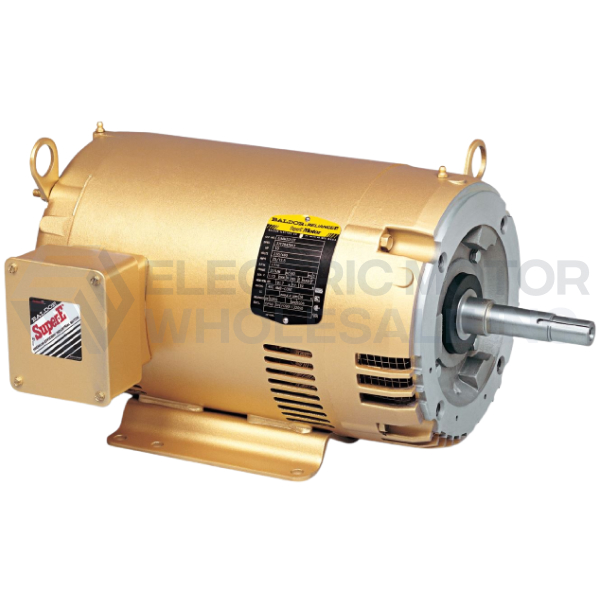

Picture is for reference only.

Part Number:

EJMM3157T

Model/Spec Number:

35LL509G073G1

Manufacturer:

ABB/Baldor

EJMM3157T BALDOR 2HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

MSRP: $1,378.00

Regular Price

USD

1,093

QTY

Shipping Details

Free No Rush Shipping

Weight:

44 lbs

Dimensions:

16 x 23 x 14 inches

HS Code:

8501524000

UPC:

781568138298

Technical Details

Specifications

Brand:	Baldor
Application:	Closed Coupled
Output HP:	2
Output KW:	1.5
Output RPM:	1760
Frame Size NEMA:	145JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	OPSB
Enclosure IEC:	IP23
Voltage:	230/460//190/380

Documentation

EJMM3157T-InfoPacket

Additional Information

APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods. FEATURES: Super-E Premium Efficient Motor Heavy gauge steel frames Moisture resistant ISR® (Inverter Spike Resistant) copper windings Over-sized ball bearings with locked drive end construction to minimize endplay Low-loss electrical grade lamination steel Three year warranty
