1.5HP BALDOR 3490RPM 143JM OPSB 3PH SUPER-E PUMP MOTOR EJMM3120T

1.5HP BALDOR 3490RPM 143JM OPSB 3PH SUPER-E PUMP MOTOR EJMM3120T

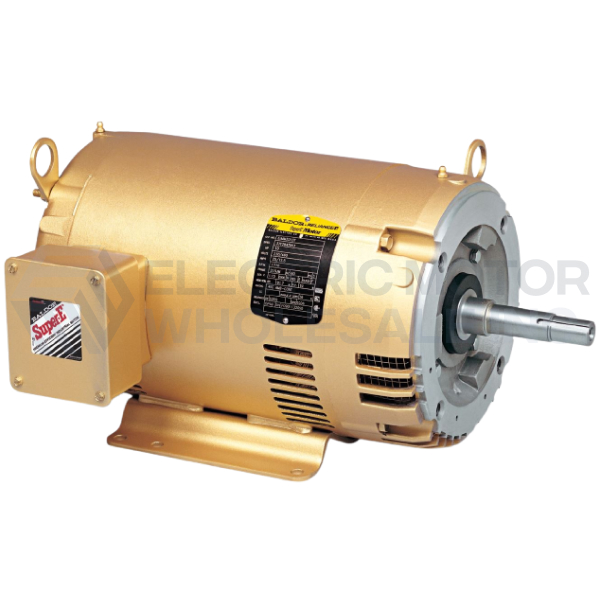

Picture is for reference only.

Part Number:

EJMM3120T

Model/Spec Number:

35N833M761G2

Manufacturer:

ABB/Baldor
EJMM3120T BALDOR 1.5HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $1,256.00

Regular Price

USD

$

902

65

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

34 lbs

Dimensions:

17 x 23 x 14 inches

HS Code:

8501524000

UPC:

781568792667

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

1.5

Output KW:

1.1

Output RPM:

3490

Frame Size NEMA:

143JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

OPSB

Enclosure IEC:

IP23

Voltage:

230/460//190/380

EJMM3120T-InfoPacket

APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
