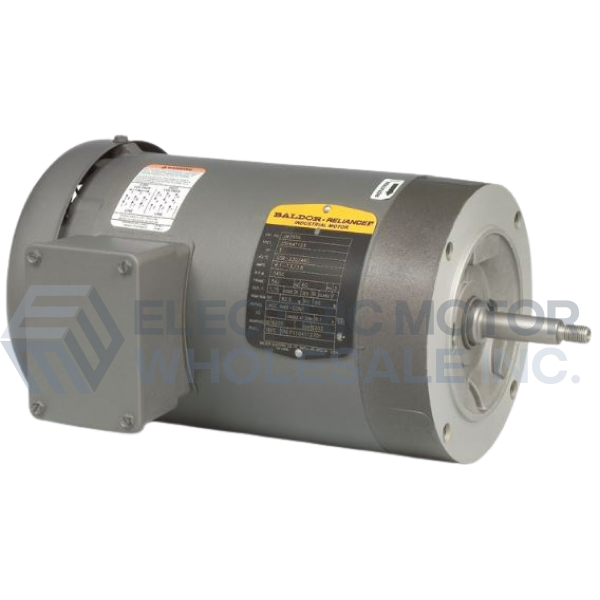

1HP BALDOR 1770RPM 56J TEFC 3PH SUPER-E JET PUMP MOTOR EJM3546

1HP BALDOR 1770RPM 56J TEFC 3PH SUPER-E JET PUMP MOTOR EJM3546


Part Number:

EJM3546

Model/Spec Number:

35F084Z805G1

Manufacturer:

ABB/Baldor
EJM3546 BALDOR 1HP Three Phase Jet Pump Electric Motors are designed for residential and industrial pumps, swimming pool pumps, etc. where three phase power is available. The Super-E Motors are designed to conserve energy over extended time periods.
MSRP: $1,232.00

Regular Price

USD

$

885

40

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

37 lbs

Dimensions:

16 x 22 x 14 inches

HS Code:

8501516040

UPC:

781568802755

Technical Details

Brand:

Baldor

Application:

Jet Pump

Output HP:

1

Output KW:

0.75

Output RPM:

1770

Frame Size NEMA:

56J

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

208-230/460

EJM3546-InfoPacket

APPLICATIONS: Jet Pump applications utilized by this motor include swimming pool pumps, general purpose pumps, and commercial machinery— particularly in the food and beverage wastewater agricultural industries. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2.

FEATURES:

  • Corrosion resistant stainless-steel shaft
  • Slotted opposite DE shaft for easy installation
  • Dynamically balanced rotor to reduce noise and increase bearing life
  • Copper windings
