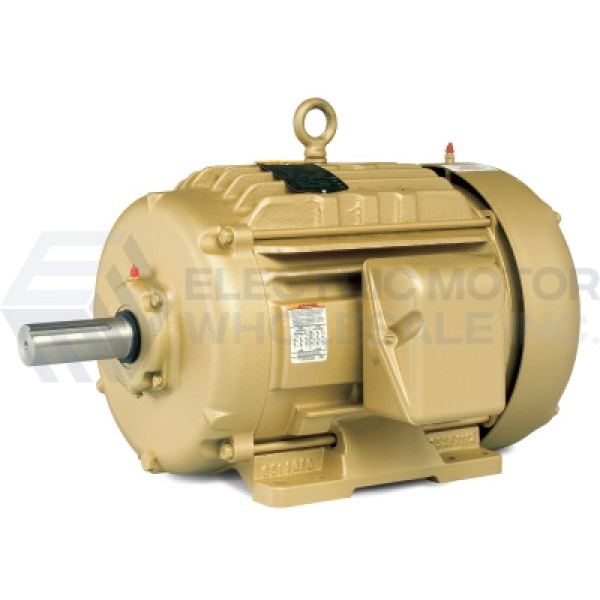

EFM4403T BALDOR 60HP F2 3PH SUPER-E MOTOR A40-6088-0108

Electric Motors

Three Phase Electric Motors

Baldor Motors Three Phase

Baldor Three Phase Totally Enclosed Super-E Motors

Baldor Three Phase F2 TEFC HVAC Super-E Motors

60HP BALDOR 1185RPM 404T TEFC F2 3PH SUPER-E MOTOR EFM4403T

Part Number:

EFM4403T

Model/Spec Number:

A40-6088-0108

Manufacturer:

ABB/Baldor

EFM4403T BALDOR 60HP Three Phase Electric Motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. The Super-E Motors are designed to conserve energy over extended time periods.

MSRP: $20,322.00

Regular Price

USD

14,604

QTY

Shipping Details

Free No Rush Shipping

Weight:

1,322 lbs

Dimensions:

37 x 46 x 28 inches

HS Code:

8501528040

UPC:

781568749029

Technical Details

Specifications

Brand:	Baldor
Application:	General Purpose
Output HP:	60
Output KW:	45
Output RPM:	1185
Frame Size NEMA:	404T
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP44
Voltage:	230/460

Documentation

EFM4403T-InfoPacket

Additional Information

APPLICATIONS: Designed for typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods.

FEATURES:

Class F insulated
1.15 service factor
Inverter rated per NEMA MG1 Part 31.4.4.2
Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives
Heavy gauge steel and cast iron frames
Ball bearings
ISR® (Inverter Spike Resistant®) copper windings
Low-loss electrical grade lamination steel
