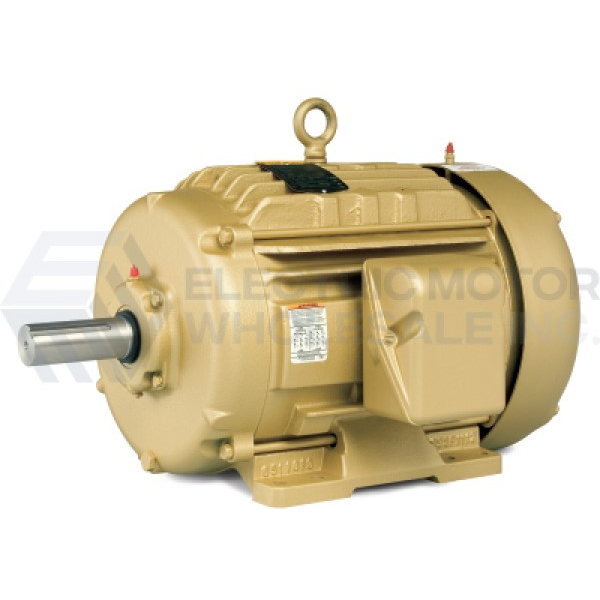

20HP BALDOR 1180RPM 286T TEFC F2 3PH SUPER-E MOTOR EFM4102T

Part Number:

EFM4102T

Model/Spec Number:

10C156Y730G1

Manufacturer:

ABB/Baldor

EFM4102T BALDOR 20HP Three Phase Electric Motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. The Super-E Motors are designed to conserve energy over extended time periods.

MSRP: $8,507.00

Regular Price

USD

$

6,113

70

QTY

Login to View Discounts

Shipping Details

Free No Rush Shipping

Weight:

437 lbs

Dimensions:

28 x 36 x 24 inches

HS Code:

8501524000

UPC:

781568749418

Technical Details

Specifications

Brand:	Baldor
Application:	General Purpose
Output HP:	20
Output KW:	15
Output RPM:	1180
Frame Size NEMA:	286T
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP44
Voltage:	230/460

Documentation

EFM4102T-InfoPacket

Additional Information

APPLICATIONS: Designed for typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods.

FEATURES:

Class F insulated
1.15 service factor
Inverter rated per NEMA MG1 Part 31.4.4.2
Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives
Heavy gauge steel and cast iron frames
Ball bearings
ISR® (Inverter Spike Resistant®) copper windings
Low-loss electrical grade lamination steel
