3HP BALDOR 1750RPM 182TC TEFC 3PH EPOXY MOTOR CWDM3611T

3HP BALDOR 1750RPM 182TC TEFC 3PH EPOXY MOTOR CWDM3611T

CEWDM.jfif

Part Number:

CWDM3611T

Model/Spec Number:

36K190X865H1

Manufacturer:

Baldor Obsolete Motors
CWDM3611T BALDOR 3HP 3PH EPOXY WASHDOWN ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

72 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501524000

UPC:

781568214756

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

3

Output KW:

2.2

Output RPM:

1750

Frame Size NEMA:

182TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

CWDM3611T-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Image for 3HP LENZE SMVECTOR NEMA4X VFD 230VAC 1or3PH INPUT ESV222N02YXC

3HP LENZE SMVECTOR NEMA4X VFD 230VAC 1or3PH INPUT ESV222N02YXC

MSRP: $1,604.81

Regular Price

$

834

50

Image for 3HP LENZE SMVECTOR NEMA4X VFD 460VAC 3PH INPUT ESV222N04TXC

3HP LENZE SMVECTOR NEMA4X VFD 460VAC 3PH INPUT ESV222N04TXC

MSRP: $1,692.02

Regular Price

$

879

86

Image for 3HP KB Electronics KBAC-45 NEMA4X 380/460VAC EPOXY WHITE VFD 9531

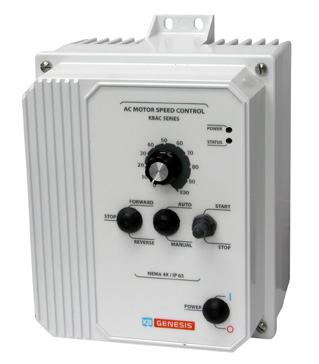

3HP KB Electronics KBAC-45 NEMA4X 380/460VAC EPOXY WHITE VFD 9531

MSRP: $685.00

Regular Price

$

479

50

Image for 3HP KB Electronics KBDF-45 IP-20 VFD 460VAC 3PH INPUT 9643

3HP KB Electronics KBDF-45 IP-20 VFD 460VAC 3PH INPUT 9643

MSRP: $502.00

Regular Price

$

351

54

Image for TECX18 3-Phase Motor Starter

TECX18 3-Phase Motor Starter

MSRP: $86.00

Regular Price

$

68

00

Image for Littelfuse SymCom 777-LR-P2 Series MotorSaver.

Littelfuse SymCom 777-LR-P2 Series MotorSaver.

MSRP: $1,243.14

Regular Price

$

767

64

Image for Littelfuse SymCom 460 MotorSaver Protection Relay.

Littelfuse SymCom 460 MotorSaver Protection Relay.

MSRP: $217.59

Regular Price

$

134

36

Image for 6206-2ZJEM SKF Premium Shielded Deep Groove Ball Bearing.

6206-2ZJEM SKF Premium Shielded Deep Groove Ball Bearing.

MSRP: $42.00

Regular Price

$

32

00

Image for 6205-2RSJEM SKF Premium Sealed Deep Groove Ball Bearing.

6205-2RSJEM SKF Premium Sealed Deep Groove Ball Bearing.

MSRP: $42.00

Regular Price

$

33

00

Image for 36FN3000C01SP BALDOR External Cooling Fan

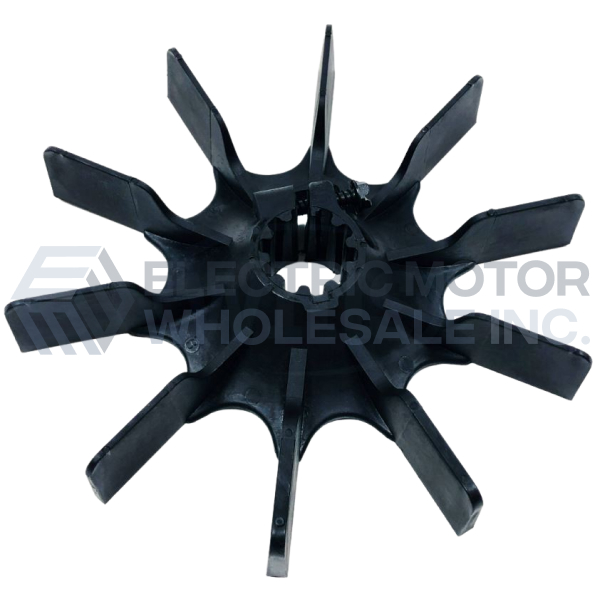

36FN3000C01SP BALDOR External Cooling Fan
