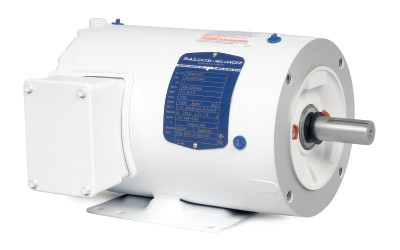

3/4HP BALDOR 1750RPM 56C TENV 3PH EPOXY WASHDOWN MOTOR CWDM3542

3/4HP BALDOR 1750RPM 56C TENV 3PH EPOXY WASHDOWN MOTOR CWDM3542


Part Number:

CWDM3542

Model/Spec Number:

35S588G069G1

Manufacturer:

ABB/Baldor
CWDM3542 BALDOR 3/4HP 3PH EPOXY WASHDOWN ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.
MSRP: $1,167.00

Regular Price

USD

$

838

68

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

29 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.51.4040

UPC:

781568108543

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

3/4

Output KW:

0.55

Output RPM:

1750

Frame Size NEMA:

56C

Mount NEMA:

C Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

230/460

CWDM3542-InfoPacket.pdf

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • 5/8" Keyed output shaft
  • Stainless steel shaft
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
