10HP BALDOR 1180RPM 256TY XPFC 3PH EXPLOSION PROOF CHEM DUTY MOTOR CPX25166T
10HP BALDOR 1180RPM 256TY XPFC 3PH EXPLOSION PROOF CHEM DUTY MOTOR CPX25166T




Product Overview

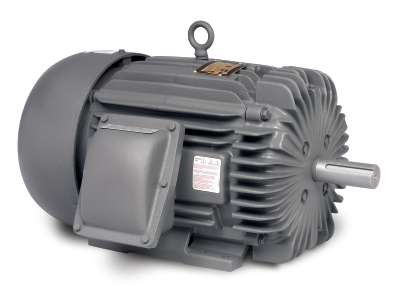

CPX25166T BALDOR 10HP Explosion Proof Severe Duty Motors are suitable to stand up against the most demanding industrial environments where protection against the elements and condensation is needed.Part Number:
CPX25166TModel/Spec Number:
09-0000-1358Manufacturer:
ABB/BaldorTechnical Details
Specifications
Brand | Baldor |
Application | XP Severe Duty |
Output HP | 10//7.5 |
Output KW | 7.5 |
Output RPM | 1180//980 |
Frame Size NEMA | 256TY |
Additional Information
Baldor Explosion Proof Severe Duty Motors are suitable to stand up against the most demanding industrial environments where protection against the elements and condensation is needed.
APPLICATIONS:
- Customer specified Division 1 hazardous areas
- Chemical, oil and gas
- Pulp & paper
- Wastewater
- Fixed and variable speed operation
FEATURES:
- 1.15 service factor
- Class F insulation
- 40°C ambient
- Suitable for 55°C ambient at 1.0 SF
- Group E brass labyrinth shaft slingers installed on both ends of motor
- Normally closed thermostats
- Corrosion resistant epoxy finish
- Threaded lead inlet
- UL breather drains
CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications.
