Product Overview

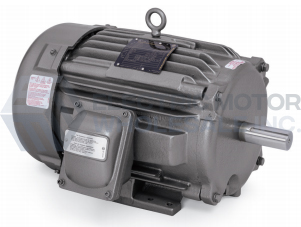

CPX21126T BALDOR 10HP Explosion Proof Severe Duty Motors are suitable to stand up against the most demanding industrial environments where protection against the elements and condensation is needed.

Part Number:

CPX21126T

Model/Spec Number:

07-0000-0122

Manufacturer:

ABB/Baldor

Technical Details

Specifications

Brand	Baldor
Application	XP Severe Duty
Output HP	10//7.5
Output KW	7.5
Output RPM	3490//2900
Frame Size NEMA	215T

Documentation

CPX21126T-InfoPacket.pdf

Explosion-Proof-Definitions.pdf

Additional Information

Baldor Explosion Proof Severe Duty Motors are suitable to stand up against the most demanding industrial environments where protection against the elements and condensation is needed.

APPLICATIONS:

Customer specified Division 1 hazardous areas
Chemical, oil and gas
Pulp & paper
Wastewater
Fixed and variable speed operation

FEATURES:

1.15 service factor
Class F insulation
40°C ambient
Suitable for 55°C ambient at 1.0 SF
Group E brass labyrinth shaft slingers installed on both ends of motor
Normally closed thermostats
Corrosion resistant epoxy finish
Threaded lead inlet
UL breather drains

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications.
