5HP BALDOR 1750RPM 1810ATC 180VDC PERMANENT MAGNET WASHDOWN MOTOR CDPWD3605

5HP BALDOR 1750RPM 1810ATC 180VDC PERMANENT MAGNET WASHDOWN MOTOR CDPWD3605


Part Number:

CDPWD3605

Model/Spec Number:

36P128Z509

Manufacturer:

ABB/Baldor
CDPWD3605 BALDOR 5HP Permanent Magnet Washdown motor is designed for food processing conveyors and feeders where the motor is exposed to high pressure wash down.

Technical Details

Application:

Epoxy Washdown

Output HP:

5

Output KW:

3.73

Output RPM:

1750

Frame NEMA:

1810ATC

Mount NEMA:

C-Face With Base

Input Voltage DC:

180

Full Load Amps:

24.5

Winding:

Permanent Magnet

Enclosure NEMA:

TEFC

CDPWD3605-InfoPacket

APPLICATIONS: includes food processing conveyors and feeders where the motor is exposed to high pressure wash down.

  • Moisture sealant on blot heads between frame and endplates
  • 1 1/8" Keyed output shaft
  • Neoprene gasketed conduit box
  • Double sealed ball bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatic epoxy paint coating
  • Class F insulation
  • Tach adaptable
Image for KBRG-255 KB Electronics 26AMP DC Regenerative Chassis Drive 8821

KBRG-255 KB Electronics 26AMP DC Regenerative Chassis Drive 8821

MSRP: $767.00

Regular Price

$

536

90

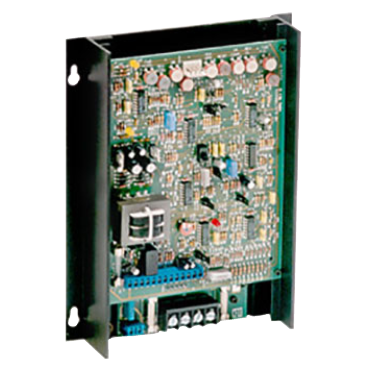

Image for BC203 BALDOR 25AMP DC CHASSIS REGEN CONTROL
