1HP BALDOR 2500RPM 56C TEFC 90VDC PERMANENT MAGNET MOTOR CDP3450

1HP BALDOR 2500RPM 56C TEFC 90VDC PERMANENT MAGNET MOTOR CDP3450

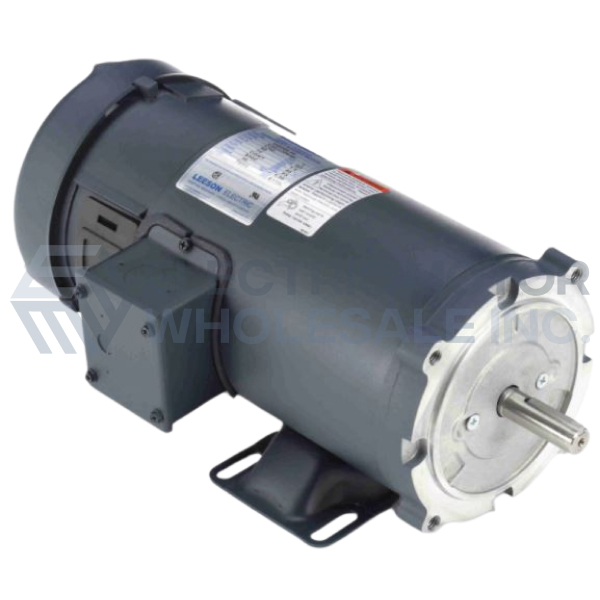

Picture is for reference only.

Part Number:

CDP3450

Model/Spec Number:

34-5990-3763

Manufacturer:

ABB/Baldor
CDP3450 BALDOR 1HP NEMA frame DC motors include permanent magnet design for adjustable speed operation from SCR controls and have a 20:1 constant torque speed range.

Ordering Notes

This product is stocked and typically ships next business day. Please review the product packet for motor specs.
MSRP: $1,689.00

Regular Price

USD

$

1,339

94

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

38 lbs

Dimensions:

13 x 23 x 15 inches

HS Code:

8501.51.6040

UPC:

781568124505

Technical Details

Application:

General Purpose

Output HP:

1

Output KW:

0.75

Output RPM:

2500

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Input Voltage DC:

90

Full Load Amps:

9.7

Winding:

Permanent Magnet

Enclosure NEMA:

TEFC

CDP3450-InfoPacket

BALDOR NEMA frame DC motors include permanent magnet design for adjustable speed operation from SCR controls and have a 20:1 constant torque speed range. Applications include conveyors, extruders, winders, printing presses and metering pumps. Most designs are constructed so a tachometer may be added for closed loop applications. 5/8" Keyed output shaft NEMA C-face with removable base Tach adaptable Class F insulation Double sealed ball bearings UL and CSA recognized
