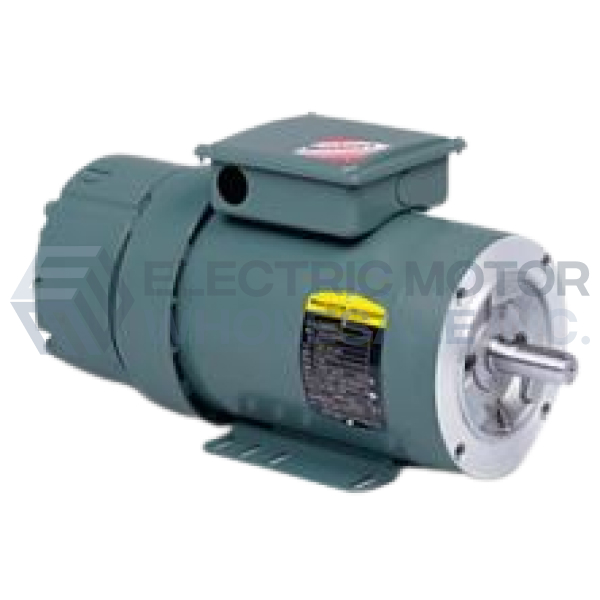

BNM3546-D BALDOR 1HP 3PH D-SERIES BRAKEMOTOR 35X056Z818G2, 35X056P560H1

1HP BALDOR 1770RPM 56 TENV 3PH D-SERIES BRAKEMOTOR BNM3546-D

Part Number:

BNM3546-D

Model/Spec Number:

35X056Z818G2

Manufacturer:

Baldor Obsolete Motors

BNM3546-D BALDOR 1HP D-Series Brake Motor is designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

39 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501516040

UPC:

781568503522

Technical Details

Specifications

Brand:	Baldor
Application:	Brakemotor
Output HP:	1
Output KW:	0.75
Output RPM:	1770
Frame Size NEMA:	56
Mount NEMA:	With Base
Enclosure NEMA:	TENV
Enclosure IEC:	IP44
Voltage:	208-230/460

Documentation

BNM3546-D-InfoPacket

Obsolete-35X056P560H1

Additional Information

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

UL/CSA recognized and CE certified
Dodge “D” Series brakes are spring set
Brakes are single phase with built-in rectifier to DC
Brakes have a manual release lever
56-140 frames have low profile F3 top-mounted conduit box
D series brake motors can be universally mounted
Inverter ready
143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
2 year warranty
