1.5HP BALDOR 2850RPM 143TC TEFC 3PH 50HZ SUPER-E MOTOR VEM3550T-57

1.5HP BALDOR 2850RPM 143TC TEFC 3PH 50HZ SUPER-E MOTOR VEM3550T-57

Picture is for reference only.

Part Number:

VEM3550T-57

Model/Spec Number:

35AA003P217G2

Manufacturer:

ABB/Baldor
VEM3550T-57 Baldor 1.5HP Three Phase Motor is designed for 50Hz applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $1,130.00

Regular Price

USD

$

812

09

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

43 lbs

Dimensions:

18 x 22 x 14 inches

HS Code:

8501524000

UPC:

781568812938

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

2850

Frame Size NEMA:

143TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

230/400

VEM3550T-57-InfoPacket

Applications: Baldor Three Phase Motor designed for 50Hz power which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Features:

  • CE, CSA, UR, WEEE certified
  • Locked DE bearing
  • Dynamically balanced rotor
  • High performance ball bearings
  • Super-E motors have IE3 efficiency
  • Compliant to EU efficiency regulations
Image for 1.5HP WEG CFW500 SERIES IP20 VFD 230VAC 1&3PH INPUT CFW500A04P3B2NB20G2

1.5HP WEG CFW500 SERIES IP20 VFD 230VAC 1&3PH INPUT CFW500A04P3B2NB20G2

MSRP: $506.00

Regular Price

$

305

62

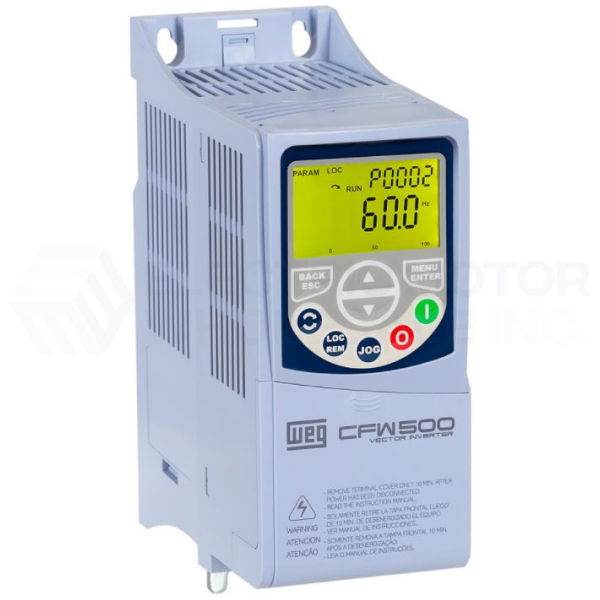

Image for 1.5HP WEG CFW500 SERIES IP20 VFD 460VAC 3PH INPUT CFW500A02P6T4NB20G2
