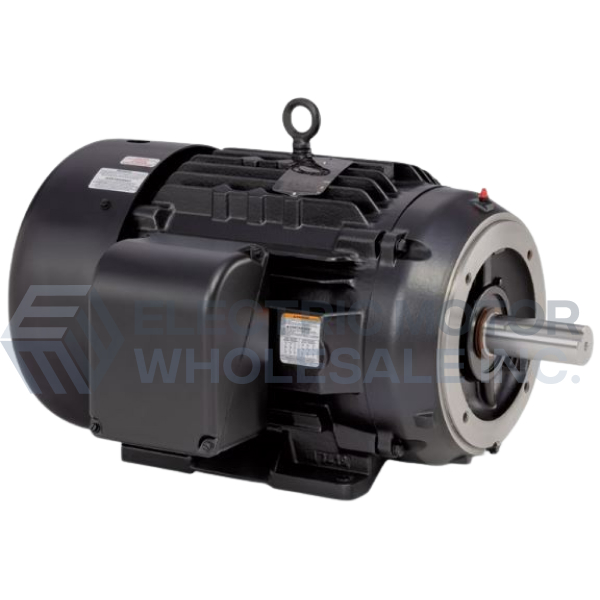

50HP BALDOR 3540RPM 326TSC TEFC 3PH XT SEVERE DUTY MOTOR CXT3502TS
50HP BALDOR 3540RPM 326TSC TEFC 3PH XT SEVERE DUTY MOTOR CXT3502TS
Product Overview
CXT3502TS BALDOR 50HP Three Phase XT Severe Duty motor is a severe duty motor that is designed for use with chemical, oil, gas, pulp & paper, coastal marine, and other applications.Part Number:
CXT3502TSModel/Spec Number:
12-0000-1904Manufacturer:
ABB/BaldorTechnical Details
Specifications
Brand | Baldor |
Application | Severe Duty |
Output HP | 50//40 |
Output KW | 37 |
Output RPM | 3540//3040 |
Frame Size NEMA | 326TSC |
Documentation
Additional Information
Baldor XT Severe Duty Motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications such as Chemical, oil & gas, Pulp & paper, forest products, Metals & foundries, Cement, aggregate & above ground mining, Food processing, Power generation and Water & wastewater treatment.
Features:
- Laser etched nameplate
- Heavy duty cast iron construction
- Compatible with ABB Ability™ smart sensor
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
- Suitable for inverter use per NEMA MG1 Part 31.4.4.2
