1/2HP BALDOR 1750RPM 56C 180VDC PERMANENT MAGNET WASHDOWN MOTOR CDPSWD3426

1/2HP BALDOR 1750RPM 56C 180VDC PERMANENT MAGNET WASHDOWN MOTOR CDPSWD3426

Picture is for reference only.

Part Number:

CDPSWD3426

Model/Spec Number:

34-6694-3946G1

Manufacturer:

ABB/Baldor
CDPSWD3426 BALDOR 1/2HP Permanent Magnet Paint Free Washdown motor is designed for food processing conveyors and feeders where the motor is exposed to high pressure wash down.
MSRP: $2,165.00

Regular Price

USD

$

1,717

57

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

38 lbs

Dimensions:

13 x 21 x 14 inches

HS Code:

8501.51.4040

UPC:

781568215777

Technical Details

Application:

Stainless Washdown

Output HP:

1/2

Output KW:

0.37

Output RPM:

1750

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Input Voltage DC:

180

Full Load Amps:

2.5

Winding:

Permanent Magnet

Enclosure NEMA:

TEFC

CDPSWD3426-InfoPacket

APPLICATIONS: includes food processing and packaging where the motor is exposed to high pressure wash down. Class F insulation 5/8" Keyed output shaft Moisture resistant 200°C magnet wire Sealed ball bearings with moisture resistant grease Contact lip seals on shaft extensions Neoprene gaskets 300 series stainless steel motor frame, base, shaft and hardware
Image for KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL 115/230VAC 1-WAY 9370

KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL 115/230VAC 1-WAY 9370

MSRP: $274.00

Regular Price

$

191

80

Image for 3/4HP KB Electronics KBWM-240 NEMA1 3.5 Amp 230VAC 180VDC SCR CONTROL 9381

3/4HP KB Electronics KBWM-240 NEMA1 3.5 Amp 230VAC 180VDC SCR CONTROL 9381

MSRP: $197.00

Regular Price

$

137

90

Image for KBPC-240D KB Electronics 10.2Amp NEMA4X DC SCR Motor Speed Control 9338

KBPC-240D KB Electronics 10.2Amp NEMA4X DC SCR Motor Speed Control 9338

MSRP: $404.00

Regular Price

$

282

80

Image for KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL BI-DIRECTION 9371

KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL BI-DIRECTION 9371

MSRP: $394.00

Regular Price

$

275

80

Image for KBPC-240D KB Electronics 10.2Amp NEMA4X DC SCR Epoxy White Motor Speed Control 9342

KBPC-240D KB Electronics 10.2Amp NEMA4X DC SCR Epoxy White Motor Speed Control 9342

MSRP: $454.00

Regular Price

$

317

80

Image for KBRC-240D KB Electronics 11 Amps NEMA4X DC Regenerative Speed Control 8840

KBRC-240D KB Electronics 11 Amps NEMA4X DC Regenerative Speed Control 8840

MSRP: $510.00

Regular Price

$

357

00

Image for 2HP KBPI-240D KB Electronics NEMA4 115/230VAC Indexer Drive 8500

2HP KBPI-240D KB Electronics NEMA4 115/230VAC Indexer Drive 8500

Image for 2HP KB Electronics KBPI-240DR NEMA4 115/230VAC Indexer Drive (Reversing) 8501

2HP KB Electronics KBPI-240DR NEMA4 115/230VAC Indexer Drive (Reversing) 8501

Image for KBRG-240D KB Electronics 11AMP DC Regenerative Chassis Drive 8802

KBRG-240D KB Electronics 11AMP DC Regenerative Chassis Drive 8802

MSRP: $580.00

Regular Price

$

406

00

Image for KBMG-212D KB Electronics 11AMP Chassis REGEN Drive 115/230VAC 8831

KBMG-212D KB Electronics 11AMP Chassis REGEN Drive 115/230VAC 8831

MSRP: $286.00

Regular Price

$

200

20

Image for KBMM-225D KB Electronics 16 Amp SCR 115/230VAC Chassis Drive 90/180VDC Output 9451

KBMM-225D KB Electronics 16 Amp SCR 115/230VAC Chassis Drive 90/180VDC Output 9451

MSRP: $237.00

Regular Price

$

165

90

Image for 1/100-2HP BALDOR DC SCR WASHDOWN SPEED CONTROL BCWD140

1/100-2HP BALDOR DC SCR WASHDOWN SPEED CONTROL BCWD140

MSRP: $1,029.00

Regular Price

$

817

34

Image for BC140-FBR BALDOR 1/100-2HP DC SCR CONTROL

BC140-FBR BALDOR 1/100-2HP DC SCR CONTROL

MSRP: $840.00

Regular Price

$

667

40

Image for BC140 BALDOR 1/100-2HP DC SCR CONTROL 1-WAY

BC140 BALDOR 1/100-2HP DC SCR CONTROL 1-WAY

MSRP: $608.00

Regular Price

$

483

35

Image for BC154 BALDOR 1/50-2HP NEMA4 SCR SPEED CONTROL 1-WAY

BC154 BALDOR 1/50-2HP NEMA4 SCR SPEED CONTROL 1-WAY

MSRP: $769.00

Regular Price

$

611

07

Image for BC139 BALDOR 1/50-3/4HP 180VDC SCR SPEED CONTROL 1-WAY

BC139 BALDOR 1/50-3/4HP 180VDC SCR SPEED CONTROL 1-WAY

MSRP: $359.00

Regular Price

$

285

81

Image for BC200 BALDOR 11AMP DC CHASSIS REGEN CONTROL

BC200 BALDOR 11AMP DC CHASSIS REGEN CONTROL

MSRP: $1,159.00

Regular Price

$

920

47

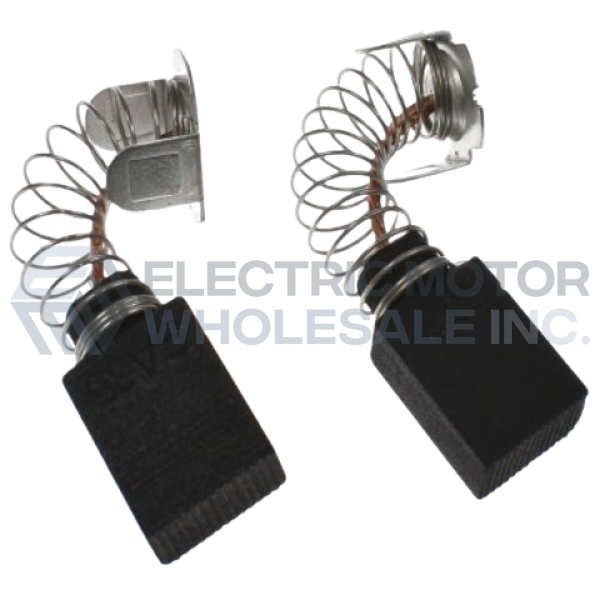

Image for BP5000AW14SP BALDOR DC CARBON BRUSH SET
