6FT-LB BALDOR 56C IP23 Double C-Face 115/230VAC Coupler Brake CBK006-1

6FT-LB BALDOR 56C IP23 Double C-Face 115/230VAC Coupler Brake CBK006-1

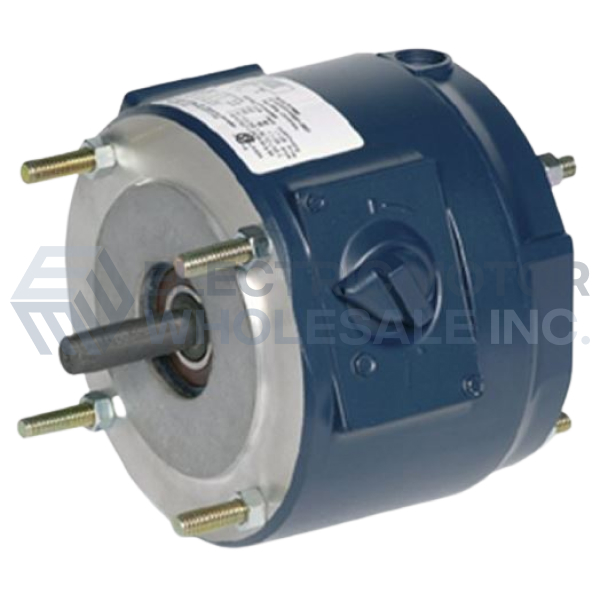

56700 Coupler Brake.jpg

Part Number:

CBK006-1

Model/Spec Number:

1-056-721-05-PF

Manufacturer:

ABB/Baldor Parts

Manufacturer Part Number:

CBK006-1
CBK006-1 BALDOR 6FT-LB Coupler Brake is designed for application where mounting the brake between the motor and driven load is the preferred or most convenient location.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $2,047.00

Regular Price

USD

$

1,575

00

QTY
Login to View Discounts

Weight:

14 lbs

Dimensions:

9 x 9 x 6 inches

HS Code:

8505200000

Technical Details

Stearns Series:

56700

Static Torque Lb.-ft.:

6

Coil Size:

#4

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

B: 5/8"

Input Frame Size:

56C

Output Frame Size:

56C

Coil Voltage AC:

115/230//95/190

Coil Hz:

60//50

Product Packet

APPLICATIONS: Designed for application where mounting the brake between the motor and driven load is the preferred or most convenient location. The are excellent for applications where a brake is needed to add to an existing equipment application without replacing the motor.

FEATURES:

  • Rugged Cast Aluminum Construction
  • Suited to most industrial applications
  • Coupler brakes are designed to be C-Face connected on both ends
  • Not suited for overhung loads to be applied to the output shaft
  • Manual Release Knob, Maintained with Automatic Spring-Set Electrically Reset
  • Adjustable torque
  • Manual Wear Adjustment
