2HP BALDOR 3450RPM 56 OPEN 1PH MOTOR L1317
2HP BALDOR 3450RPM 56 OPEN 1PH MOTOR L1317

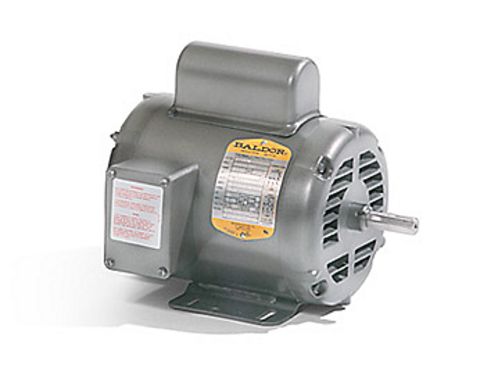

Picture is for reference only.
Part Number:
L1317Model/Spec Number:
35J384-184Manufacturer:
Baldor Obsolete MotorsManufacturer Part Number:
L1317Click below to view suggested functional replacement.
Shipping Details
Weight:
44 lbsDimensions:
13 x 24 x 13 inchesUPC:
781568101483Technical Details
Specifications
Application: | General Purpose |
Output HP: | 2 |
Output RPM: | 1900-4000 |
Frame NEMA: | 56 |
Mount NEMA: | Base Mount |
Enclosure NEMA: | DP, OPEN, ODP, OPSB |
Voltage: | 115/230 |
Frequency (Hz): | 60 |
Thermal Protection: | NONE |
Phase: | 1-Phase |
Documentation
Additional Information
BALDOR Single Phase General Purpose Motor designed for compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc. where single phase power is available.
FEATURES:
- Copper windings
- Rotors dynamically balanced
- Ball bearings
- Heavy gauge steel frame construction
| SPEC. NUMBER: | 35J384-184 |
| CATALOG NUMBER: | L1317 |
| FL AMPS: | 26/13 |
| 208V AMPS: | 12.4 |
| BEARING-DRIVE-END: | 6205 |
| BEARING-OPP-DRIVE-END: | 6203 |
| DESIGN CODE: | L |
| DOE-CODE: | -- |
| FL EFFICIENCY: | 70 |
| ENCLOSURE: | OPEN |
| FRAME: | 56/56H |
| HERTZ: | 60 |
| INSULATION-CLASS: | B |
| KVA-CODE: | G |
| SPEED [rpm]: | 3450 |
| OUTPUT [hp]: | 2 |
| PHASE: | 1 |
| POWER-FACTOR: | 75 |
| RATING: | 40C AMB-CONT |
| SERIAL-NUMBER: | -- |
| SERVICE FACTOR: | 1.15 |
| VOLTAGE: | 115/230 |
Related Products

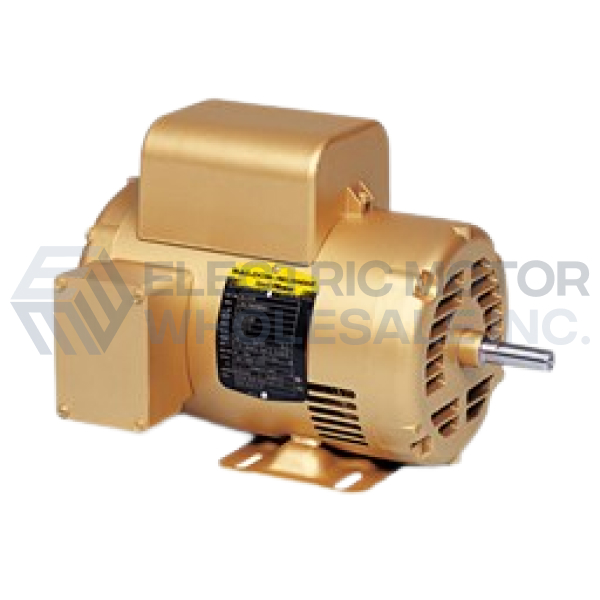

Click below to view suggested functional replacement.
