2HP LEESON 3450RPM 56 DP 1PH MOTOR 113632.00

Catalog Number:  113632.00 Made in USA
Model Number:  P6K34DB16F
Description:  2HP,3450RPM,56,DP,1PH,60HZ
Ship Weight:  39 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • 5/8" shaft output diameter
  • Durable rolled steel frame
  • Manual Overload Protection
  • Capacitor Start and Run
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation
  • UL Recognized Component Listing and CSA approval.
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 9.6-8.6 F.L. Amps
S. F Amps 19.6 S. F Amps 10.8-9.8 S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE KD
KW 1.492 Model # P6K34DB16F
Frame 56 Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection MANUAL Therm.Prot. BEJ46DA
Eff 100% 78 Eff 75%   PF 96
UL No CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 39 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004004 Mounting RIGID Rotation SELECTIVE CCW

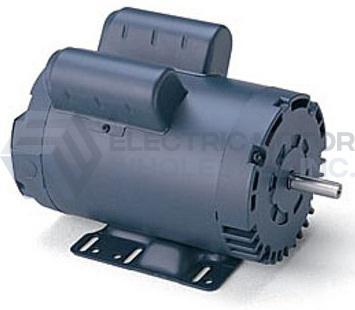

2HP LEESON 3450RPM 56 DP 1PH MOTOR 113632.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 113632.00
Stock # 113632
Price: $369.00
Compare At: $931.00
