1/4HP WEG 1740RPM W56 ODP 1PH MOTOR .2518OT1BW56-S
1/4HP WEG 1740RPM W56 ODP 1PH MOTOR .2518OT1BW56-S

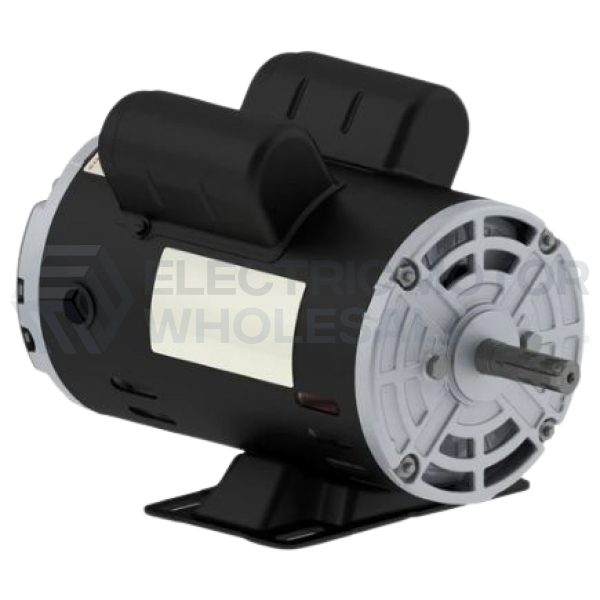

Picture is for reference only.
Part Number:
.2518OT1BW56-SModel/Spec Number:
13039267Manufacturer:
WEGMSRP: $241.00
Regular Price
USD
$
214
49
Shipping Details
Weight:
20 lbsDimensions:
13 x 16 x 14 inchesHS Code:
8501.40.4040UPC:
7909265073749Technical Details
Specifications
Application: | General Purpose |
Output HP: | 1/4 |
Output KW: | 0.18 |
Output RPM: | 1740 |
Frame NEMA: | W56 |
Mount NEMA: | Base Mount |
Enclosure NEMA: | IC01 - ODP |
Voltage: | 115/208-230 |
Frequency (Hz): | 60 |
Efficiency: | 68.5 |
Documentation
Additional Information
WEG Single Phase General Purpose Rolled Steel Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.
Features:
- Ball bearings
- Class F insulation
- V-ring seals
- NPT Threaded holes in terminal box
