5HP WEG 3500RPM 184T ODP 1PH MOTOR 00536OS1B184T

5HP WEG 3500RPM 184T ODP 1PH MOTOR 00536OS1B184T

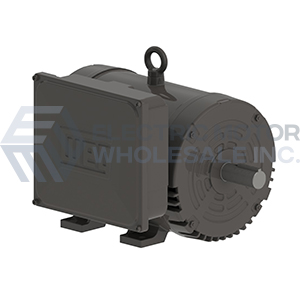

ODP CAST IRON WBASE.jpg
Picture is for reference only.

Part Number:

00536OS1B184T

Model/Spec Number:

14424665

Manufacturer:

Weg Obsolete
00536OS1B184T WEG 5HP Single Phase General Purpose Motor provides high starting torque for the most demanding applications. Standard features such a v-rings provide versatility for indoor and outdoor applications.

Item Discontinued

Click below to request an agent review potential options.

Weight:

159 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

UPC:

7909492110248

Technical Details

Application:

General Purpose

Output HP:

5

Output KW:

3.7

Output RPM:

3500

Frame NEMA:

184T

Mount NEMA:

Base Mount

Enclosure NEMA:

ODP

Enclosure IEC:

IP22

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet

WEG Single Phase General Purpose Rolled Steel Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.

Features:

  • Ball bearings
  • Class F insulation
  • V-ring seals
