1HP WEG 1745RPM 56 TEFC 1PH MOTOR 00118ES1B56-S

1HP WEG 1745RPM 56 TEFC 1PH MOTOR 00118ES1B56-S

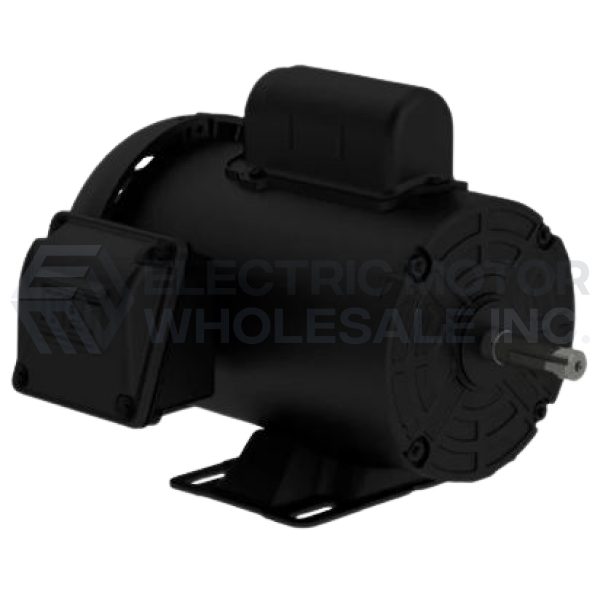

56 WB CSIR.jpg
Picture is for reference only.

Part Number:

00118ES1B56-S

Model/Spec Number:

14797784

Manufacturer:

WEG
00118ES1B56-S WEG 1HP Single Phase TEFC motor is the perfect option for applications that require robustness, low weight and high performance.
MSRP: $401.00

Regular Price

USD

$

356

89

QTY
Login to View Discounts

Weight:

40 lbs

Dimensions:

17 x 20 x 15 inches

HS Code:

8501.40.6040

UPC:

7909522415855

Technical Details

Application:

General Purpose

Output HP:

1

Output KW:

0.75

Output RPM:

1745

Frame NEMA:

56

Mount NEMA:

Base Mount

Enclosure NEMA:

IC411 - TEFC

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet

WEG Single Phase General Purpose Rolled Steel Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.

Features:

  • Ball bearings
  • Class F insulation
  • V-ring seals
