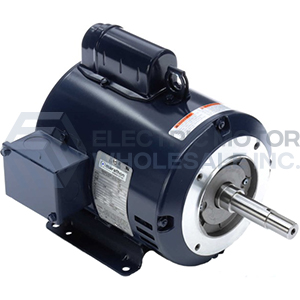

1.5HP MARATHON 1800RPM 145JP DP 115/208-230V 1PH MOTOR Z422
|Ship Weight:||43 lbs.|
This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.
APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.
- C-Face with rigid base
- NEMA JP pump shaft dimensions
- Ball bearings, mechanically locked on shaft end
- Capacitor start design for high starting torque
- Continuous duty
- 1.15 Service Factor
- UL Recognized and CSA Certified
- Will not accept drip cover kit
- Footnotes: 95
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
|Mounting||C-Face Rigid||NEMA Design||L|
|Orientation||HORIZONTAL||Starting Type||CAP START IND RUN|
|Assembly||F1 ONLY||KVA Code||J|
|Drive End Bearing||BALL||IP Code||22|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6206||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||43 LB lbs|
