2HP MARATHON 1800RPM 182T 115/230V 1PH HI-TORQUE MOTOR Z119A

Catalog Number: Z119A
Model Number: 182TCFW7072
Description: 2HP,1800RPM,182T,115/230V,TEFC,1PH,60HZ
Ship Weight:  66 lbs.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.

FEATURES:

  • Rigid base
  • 1.15 Service Factor
  • Ball bearings, shaft end mechanically locked on C-face models
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains
  • F1 Mounting only, cannot reassemble to F2
  • Shaft slinger
  • UL Recognized and CSA Certified
  • Footnotes: 13

Phase 1 Insulation Class F
Frame 182T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code J
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 66 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

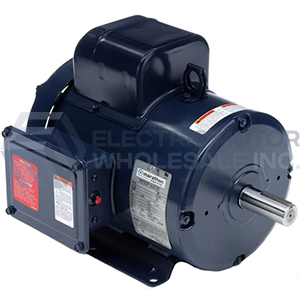

2HP MARATHON 1800RPM 182T 115/230V 1PH HI-TORQUE MOTOR Z119A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z119A
Stock # Z119A
Price: $472.00
Compare At: $1,087.00
