10HP MARATHON 1800RPM 215T 230V 1PH MOTOR Z116

Catalog Number: Z116
Model Number: 215TBFW7044
Description: 10HP,1800RPM,215T,230V,TEFC,1PH,60HZ
Ship Weight:  175 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications requiring extra-high torque.

FEATURES:

  • Rigid base
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Class F insulation
  • 1.0 Service Factor
  • Ball bearings
  • 300% and greater starting torque for hard-to-start applications
  • Totally enclosed and fully gasketed for dirty environments
  • 213/215TZ models have 1-1/8” shaft
  • Manual reset thermal protector
  • Condensate drains
  • Shaft slinger
  • UL Recognized and CSA Certified
  • Footnotes: 1,17

Phase 1 Insulation Class F
Frame 215T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code H
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6307 Rotation SELECTIVE CCW
Opposite End Bearing Size 6206
Weight 175 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

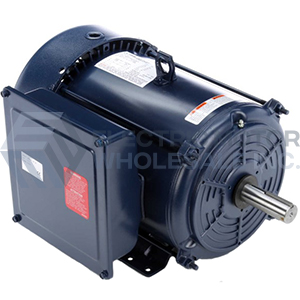

10HP MARATHON 1800RPM 215T 230V 1PH MOTOR Z116
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z116
Stock # Z116
Price: $1,401.00
Compare At: $3,226.00
