1/3HP MARATHON 1625RPM 48Y 115/230V TEAO 1PH MOTOR X921

Catalog Number:  X921
Model Number:  48A17T2006
Description:  1/3HP,1625RPM,48Y,115/230V,TEAO,1PH,60HZ
Design:  PERMANENT SPLIT CAPACITOR, SINGLE-SPEED
Ship Weight:  24 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.



PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor included
  • Automatic reset thermal protector
  • Heavy gauge steel frame and yoke fan shroud mounted by four 7/8” extended stud bolts on 5-1/8” bolt circle
  • Single-speed model
  • 1/2” x 2-1/2” long shaft with two flats, 90° apart
  • 1.0 Service Factor
  • Ball bearings
  • UL Recognized and CSA Certified
  • Footnotes: 17

Phase

1

Insulation Class

B

Frame

48Z

Duty

CONT. AOM

Enclosure

TENV

Ambient

40

Mounting

Special

NEMA Design

NO DESIGN CODE

Orientation

HORIZONTAL

Starting Type

PSC 1 SPEED

Assembly

F1 ONLY

KVA Code

D

Drive End Bearing

BALL

IP Code

43

Opposite End Bearing

BALL



Drive End Bearing Size

6203

Rotation

SELECTIVE CCW

Opposite End Bearing Size

6203



Weight

24 LB lbs



CE

N/A

CSA

Y

UL

Recognized Construction and Protector

Thermal Protection

Automatic Protector (under locked rotor only)

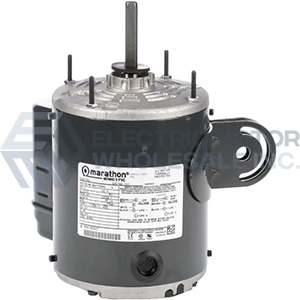

1/3HP MARATHON 1625RPM 48Y 115/230V TEAO 1PH MOTOR X921
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X921
Stock # X921
Price: $126.00
Compare At: $221.00
