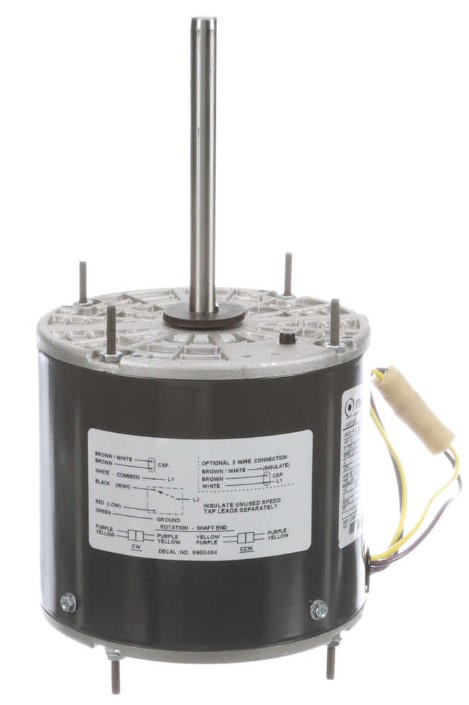

3/4-1/5HP MARATHON 1075RPM 48Y 115V OPAO 1PH MOTOR X074
|Design:||MULTI-SPEED, PERMANENT SPLIT CAPACITOR|
|Ship Weight:||22 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: Residential and commercial furnaces, air conditioners, exhaust fans, and other air handling equipment installed in clean and dry environments.
PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.
- Capacitor not included
- Automatic thermal protector (under locked rotor only)
- Replaces EMERSON No. 5470 and A.O. SMITH No. FDL6002
- Open end brackets
- 2 1/4” Resilient rings
- 1/2” x 5” long shaft with two flats 4.50” 90O apart
- Weather resistant reversing plug
- Reversible by reconnection
- 36” long leads
- Extended thru-bolts, 8-32 1/2” on drive end, 3/4” on non-drive end
- UL Recognized and CSA Certified
- Ball Bearings
3/4 HP @ 115 Volts, 20.0MFD (20DV) Capacitor(Not Included), Speed ALL
1/2 HP @ 115 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed ALL
1/3 HP @ 115 Volts, 10.0MFD (10DV)Capacitor(Not Included), Speed MED-HI, MED-LO, LO
1/4 HP @ 115 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed MED-LO, LO
1/5 HP @ 115 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed LO
|Mounting||Resilient Rings - Extended Studs||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||PSC 4 SPEED|
|Assembly||F1 ONLY||KVA Code||C|
|Drive End Bearing||BALL||IP Code||01|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||22 LB lbs|
|UL||Recognized Construction and Protector|
|Thermal Protection||Automatic Protector (under locked rotor only)|
