1/2HP MARATHON 1800RPM 56 TEFC 115/208-230V 1PH MOTOR T010

Catalog Number: T010
Model Number: 56C17F5351
Description: 1/2HP,1800RPM,56,115/208-230V,TEFC,1PH,60HZ
Ship Weight:  29 lbs.

APPLICATIONS: Replacement motor for table saws, planers, lathes, and other equipment found in the woodworking and metalworking trades. This totally enclosed, fan cooled motor is well suited for use in dusty and dirty environments or where wood or metal shavings are present.

FEATURES:

  • Capacitor Start Induction Run design
  • Double sealed ball bearings
  • Heavy gauge steel frame and base
  • 1.15 Service Factor
  • Manual reset thermal protector
  • Dependable, dust-proof centrifugal starting switch
  • On/off toggle switch and 8 foot cord with 115 volt plug included on 1/2 to 1-1/2 HP models
  • UL Recognized and CSA Certified
  • Footnotes: 2

Phase 1 Insulation Class B
Frame 56 Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design N
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 29 LB lbs
CE N/A CSA Y
UL Recognized Construction and Protector
Thermal Protection Manual Protector

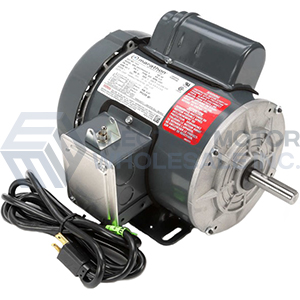

1/2HP MARATHON 1800RPM 56 TEFC 115/208-230V 1PH MOTOR T010
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: T010
Stock # T010
Price: $270.00
Compare At: $620.00
