1/2HP MARATHON 1725RPM 56 115/230V DP 1PH MOTOR S013A

Catalog Number:  S013A
Model Number:  056B17D11042
Description:  1/2HP,1725RPM,56,115/230V,DP,1PH,60HZ
Ship Weight:  23 lbs.

MARATHON Single Phase General Purpose Electric Motor for use with fans, blowers, and belted applications where exposure is limited to dust and splashes of water.


  • Automatic overload protection
  • Capacitor Start Induction Run design
  • Heavy gauge steel frame and base
  • Ball bearings
  • 1.0 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 2
Nameplate - 60 HZ
Hertz 60   HP 1/2
KW .37   RPM 1800
FL Eff 76.2   Volts 115/230
FL Amps 4.6/2.3   SF 1.35
Motor Wt. 23 LB   UL Recognized Construction and Protector
CE Y   CSA Y
Phase 1   Insulation Class B
Frame Size 56   Enclosure DP
Ambient 40   Mount Type Rigid
Therm.Prot. Automatic Protector   Orientation HORIZONTAL
Nema Design N   Assembly F1 ONLY
Starting Method CAP START CAP RUN   PE Bearing Type BALL
KVA Code K   OPE Bearing Type BALL
IP Code 22   Drive End Bearing Size 6203
Rotation SELECTIVE CCW   Opposite End Bearing Size 6203

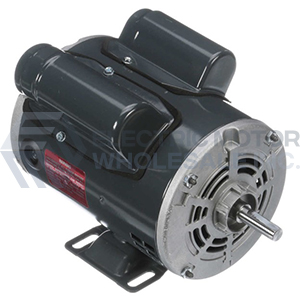

1/2HP MARATHON 1725RPM 56 115/230V DP 1PH MOTOR S013A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: S013A
Stock # S013A
