1/3HP MARATHON 1725RPM 48 115/230V DP 1PH MOTOR S011

Catalog Number:  S011
Model Number:  048C17D2024
Description:  1/3HP,1725RPM,48,115/230V,DP,1PH,60HZ
Ship Weight:  16 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • Automatic overload protection
  • Capacitor Start Induction Run design
  • Heavy gauge steel frame and base
  • Ball bearings
  • 1.0 Service Factor
  • UL Recognized and CSA Certified

Phase 1 Insulation Class B
Frame 48 Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 16 LB lbs
UL Recognized Construction and Protector
Thermal Protection Automatic Protector

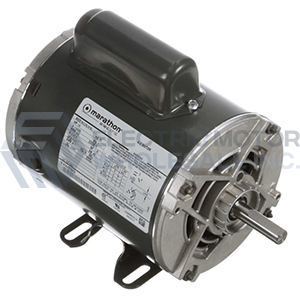

1/3HP MARATHON 1725RPM 48 115/230V DP 1PH MOTOR S011
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: S011
Stock # S011
Price: $110.00
Compare At: $177.00
