1/7HP MARATHON 3450RPM 48M 115V SEMI ENCLOSED 1PH MOTOR O701

Catalog Number:  O701
Model Number:  48A34SU1001
Description:  1/7HP,3450RPM,48M,115V,SEMI ENCLOSED,1PH,60HZ
Design: PERMANENT SPLIT CAPACITOR
Ship Weight:  8 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Direct replacement motor for mini pumps in residential or light commercial furnaces.

FEATURES:

  • Automatic overload protection
  • High efficiency design
  • 14" cord for easy connection
  • Ultra quiet performance
  • Semi Enclosed steel frame
  • 10” Leads
  • 1.0 Service Factor
  • Footnotes: 61

Phase 1 Insulation Class U
Frame TZ Duty UNK
Enclosure SEMI ENCLOSED Ambient N/A
Mounting NAN NEMA Design UNK
Orientation HORIZONTAL Starting Type UNK
Assembly NAN KVA Code N/A
Drive End Bearing BALL IP Code -
Opposite End Bearing UNK
Drive End Bearing Size 6203 Rotation REV
Opposite End Bearing Size 6203
Weight 8 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector

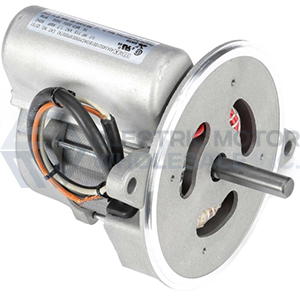

1/7HP MARATHON 3450RPM 48M 115V SEMI ENCLOSED 1PH MOTOR O701
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: O701
Stock # O701
Price: $112.00
Compare At: $201.00
