1/4HP MARATHON 3450RPM 56C 115V DP 1PH MOTOR O200

Catalog Number:  O200
Model Number:  56S34D2000
Description:  1/4HP,3450RPM,56C,115V,DP,1PH,60HZ
Design: SPLIT PHASE
Ship Weight:  14 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Direct replacement motor for residential and commercial oil burners and hot water pressure/steam cleaners.

FEATURES:

  • Manual overload protection
  • Split Phase design
  • NEMA 56C direct mounting
  • NEMA Jet Pump Service factors
  • Moderate starting torque
  • Ball bearings
  • 1.75 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 3,15,115

Phase 1 Insulation Class B
Frame 56C Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Footless NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type SPLIT PHASE
Assembly F1 ONLY KVA Code T
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation FIXED CW
Opposite End Bearing Size 6203
Weight 14 LB lbs
CE Y CSA Y
UL Recognized Construction and Protector
Thermal Protection Manual Protector

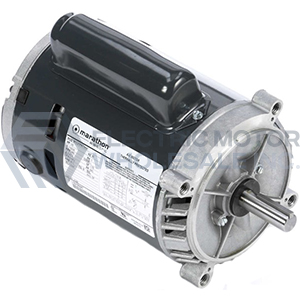

1/4HP MARATHON 3450RPM 56C 115V DP 1PH MOTOR O200
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: O200
Stock # O200
Price: $87.00
Compare At: $139.00
