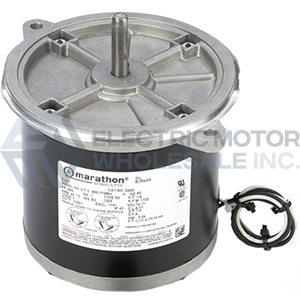

1/4HP MARATHON 3450RPM 48N 115/230V SEMI ENCLOSED 1PH MOTOR O013
|Ship Weight:||19 lbs.|
Contact our sales team for direct replacement options!
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.
APPLICATIONS: Direct replacement motor for residential and commercial oil burners and hot water pressure/steam cleaners.
- Manual overload protection
- Capacitor Start Induction Run design
- Semi Enclosed steel frame
- Two-bolt, NEMA N-Flange direct
- Ball bearings
- 1.0 Service Factor
- Footnotes: 2
|Mounting||N-Flange Footless||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||CAP START IND RUN|
|Assembly||F1 ONLY||KVA Code||L|
|Drive End Bearing||BALL||IP Code||10|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||REV|
|Opposite End Bearing Size||6203|
|Weight||19 EA lbs|
|UL||Recognized Construction and Protector|
|Thermal Protection||Manual Protector|
