1/8HP MARATHON 3450RPM 48N 115V SEMI ENCLOSED 1PH MOTOR O005

Catalog Number:  O005
Model Number:  48S34S2004
Description:  1/8HP,3450RPM,48N,115V,SEMI ENCLOSED,1PH,60HZ
Design: SPLIT PHASE
Ship Weight:  9 lbs.

Contact our sales team for direct replacement options!

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Direct replacement motor for residential and commercial oil burners and hot water pressure/steam cleaners.

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

FEATURES:

  • Manual overload protection
  • Split Phase Design
  • Semi Enclosed steel frame
  • Two-bolt, NEMA N-Flange direct
  • Ball bearings
  • 10” Leads
  • 1.0 Service Factor
  • Footnotes: 3,61

Phase 1 Insulation Class B
Frame 48N Duty CONTINUOUS
Enclosure SEMI ENCLOSED Ambient 40
Mounting N-Flange Footless NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type SPLIT PHASE
Assembly F1 ONLY KVA Code U
Drive End Bearing BALL IP Code 10
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CW
Opposite End Bearing Size 6203
Weight 9 LB lbs
CE Y CSA Y
UL Recognized Construction and Protector
Thermal Protection Manual Protector

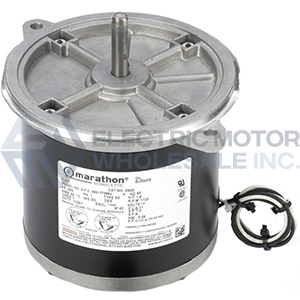

1/8HP MARATHON 3450RPM 48N 115V SEMI ENCLOSED 1PH MOTOR O005
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: O005
Stock # O005
Price: $94.00
Compare At: $216.00
