1/3HP MARATHON 1800RPM 48N 115V SE 1PH MOTOR O003

Catalog Number:  O003
Model Number:  48S17S24
Description:  1/3HP,1800RPM,48N,115V,SE,1PH,60HZ
Design: SPLIT PHASE
Ship Weight:  17 lbs.

Contact our sales team for direct replacement options!

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Direct replacement motor for residential and commercial oil burners and hot water pressure/steam cleaners.

FEATURES:

  • Manual overload protection
  • Split Phase design
  • Semi enclosed enclosure
  • Two-bolt, NEMA N-Flange direct
  • Ball bearings
  • 1.0 Service Factor

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the
windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

Phase 1 Insulation Class B
Frame 48N Duty CONTINUOUS
Enclosure SEMI ENCLOSED Ambient 40
Mounting N-Flange Footless NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type SPLIT PHASE
Assembly F1 ONLY KVA Code N
Drive End Bearing BALL IP Code 10
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 17 LB lbs
CE Y CSA Y
UL Recognized Construction and Protector
Thermal Protection Manual Protector

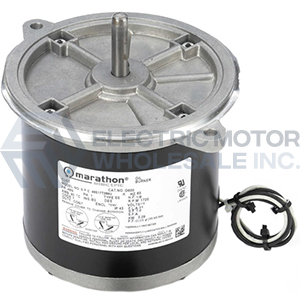

1/3HP MARATHON 1800RPM 48N 115V SE 1PH MOTOR O003
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: O003
Stock # O003
