1.5HP MARATHON 1800RPM 145TC TENV 115/208-230V 1PH MOTOR N274

Catalog Number: N274
Model Number: 145TBWD5327
Description:  1.5HP,1800RPM,145TC,TENV,115/208-230,1PH,60HZ,STAINLESS
Ship Weight:  43 lbs.

Applications: Built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, the WASHGUARD SST all-stainless motor is able to withstand the sever wash-down environments found in the food processing, chemical processing and beverage industries.

Features:

  • C-Face Footless
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Encapsulated electronic starting switch is impervious to moisture
  • Capacitor start induction run design for high starting torque
  • 1.15 Service Factor on sinewave
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 303 stainless steel shaft with spring loaded contact seals in each end.
  • 300 Series Stainless steel external construction: frame, endshields, conduit
    box, fan guard, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator.
  • 100% Paint-free constructions
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure
  • Nameplate information laser etched on frame
  • BISSC Certified for baking industry
  • UL Recognized, CSA Certified and CE Mark
  • Footnotes: 1

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 1 Insulation Class F
Frame 145TC Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting C-Face Footless NEMA Design N
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code J
Drive End Bearing BALL IP Code 55
Opposite End Bearing BALL
Drive End Bearing Size 6205 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 43 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

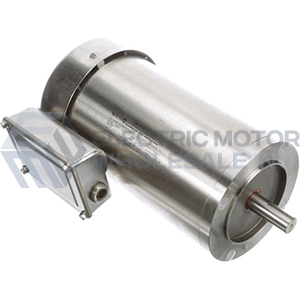

1.5HP MARATHON 1800RPM 145TC TENV 115/208-230V 1PH MOTOR N274
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: N274
Stock # N274
Price: $628.00
Compare At: $1,012.00
