3/4HP MARATHON 3600RPM 56C 200-230/460V TEFC 3PH MOTOR K231

Catalog Number:  K231
Model Number:  5K36MN340
Description:  3/4HP,3600RPM,56C,200-230/460V,TEFC,3PH,60/50HZ
Ship Weight:  18 lbs.

APPLICATIONS: General purpose use on gear reducers, pumps, machine tools, and other
direct-coupled equipment installed in damp, dusty, or dirty environments. Additionally, cast iron frame motors may be suitable for the process industries.


  • C-Face no base
  • Totally enclosed fan cooled
  • 5/8" shaft output diameter
  • 1.50 Service Factor

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class B
Frame 56C Duty Continuous
Enclosure TEFC Ambient 40
Mounting N/R NEMA Design -
Orientation Horizontal or Vertical Starting Type Squirrel Cage Induction
Assembly - KVA Code M
Drive End Bearing BALL IP Code -
Opposite End Bearing BALL
Drive End Bearing Size 6203
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 18 LB
Thermal Protection None

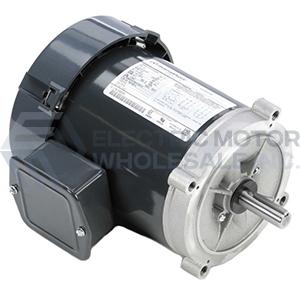

3/4HP MARATHON 3600RPM 56C 200-230/460V TEFC 3PH MOTOR K231
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: K231
Stock # K231
