1HP KBDF-42 IP-20 VFD 460VAC 3PH INPUT 9642
|KB 9642||KBDF-42 - In Stock|
|Description:||1HP,460VAC,3PH INPUT,IP-20,CASE B|
|Output:||2.0 Amps, 460VAC, 3PH|
|Ship Weight:||4.2 lbs.|
Easy to Install and Simple to Operate
With CSP™ you are up and running in less than 10 minutes.
KBDF Sensorless Flux Vector Compensation with Static-Auto-Tune to provide excellent speed regulation with high torque loads throughout the entire speed range. Auto energy saving at light loads. Smooth motor torque. They are designed for applications that may or may not require digital programming and a digital display. Hybrid Digital KBDF AC Drive provides variable speed control of standard 3 phase AC induction motors from 1/8 to 5 horsepower with 200% Starting Torque and Digital Display with LED Status Indicators
Uses only the power the application requires Energy savings is realized by using variable motor speed vs. constant speed motors.
Sensorless Flux Vector Control
Provides excellent speed regulation with high torque loads throughout the entire speed range. Auto-energy saving at light loads. Smooth motor torque.
When used with process control, the Local/Remote key can be used to switch from process control to manual control if a process fault occurs.
Electronic Inrush Current Limit (EICL™) Protection
Eliminates harmful inrush AC line current during power up.
Seven Isolated multi-function inputs with sink or source mode control logic, two analog inputs, two multi-function output relays and one analog output.
Quickest way to change motor speed.
Provides smooth recovery to the previous set speed during a momentary power loss.
Holding Torque at Zero Speed
Resists motor shaft rotation when the drive is in “Stop” mode.
Eliminates tripping due to high bus voltage caused by rapid deceleration of high inertial loads.
Undervoltage and Overvoltage Protection
Shuts down the drive if the AC line input voltage goes above or below the operating range.
Short Circuit Protection
Shuts down the drive if a short circuit occurs at the motor (phase-to-phase).

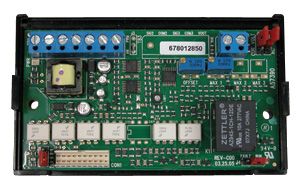

P/N: 9646 IODF Input/Output Multi-Function Expansion Module, Provides additional input/output and Multi-Function Relay. Increases the functionality of the standard input/output of the drive.
P/N: 9598 Dynamic Brake Module, Provides dynamic braking of the motor. Externally mounted. Case "B" drives only.
P/N 9634 Memory Module: The optional plug-in memory module can store up to 4 programs for cloning and archiving. This is in addition to the (4) on-board programs.
P/N: 9647 DIDF RS-232 and RS-485 Modbus RTU Communication Module, Allows direct communication between the drive and Modbus RTU protocol. Uses RS-232 and RS-485 Modbus RTU Communication Module. (Required for Drive-Link™.)
