1.5HP MARATHON 1725RPM 56C TEFC 460V 3PH MOTOR K1438

Catalog Number: K1438
Model Number: 5K49NN4052T
Description: 1.5HP,1725RPM,56C,460V,TEFC,3PH,60/50HZ
Ship Weight:  29 lbs.

FEATURES:

  • C-Face no base
  • TEFC construction
  • Automatic Thermal protection
  • Designed for 50 Hz operation
  • Footnotes: 50

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class B
Frame 56C Duty Continuous
Enclosure TEFC Ambient 40
Mounting N/R NEMA Design -
Orientation Vertical Shaft Down Starting Type Squirrel Cage Induction
Assembly N/A KVA Code K
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 29 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Automatic

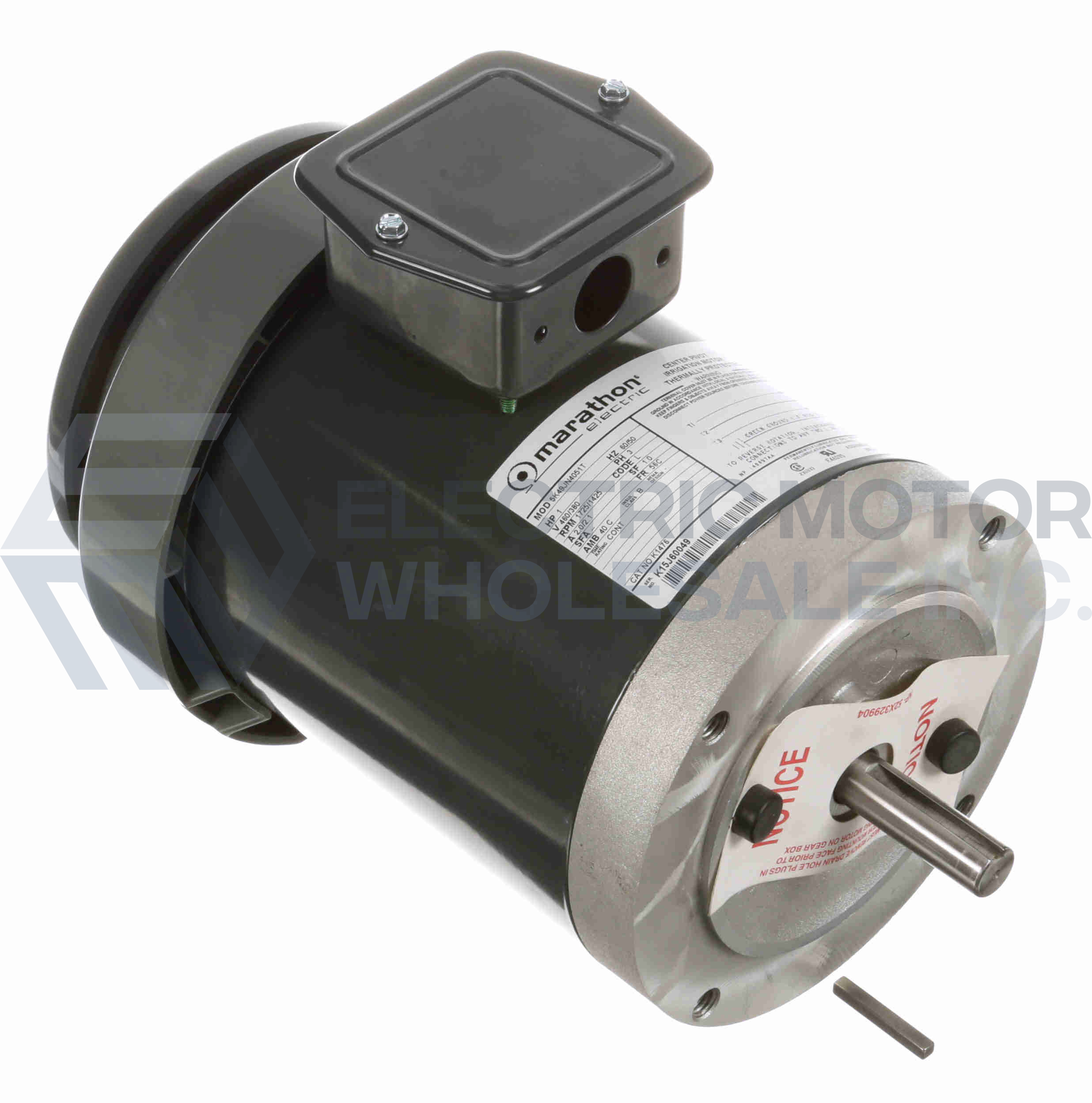

1.5HP MARATHON 1725RPM 56C TEFC 460V 3PH MOTOR K1438
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: K1438
Stock # K1438
Price: $320.00
Compare At: $736.00
Quantity:
