1.5HP MARATHON 1800RPM 56C TEFC 460V 3PH MOTOR K1438B

Catalog Number: K1438B
Model Number: 056T17F15659
Description: 1.5HP,1800RPM,56C,460V,TEFC,3PH,60HZ
Ship Weight:  44 lbs.

MARATHON Three Phase TEFC Center Pivot Irrigation Farm Duty Motor

FEATURES:

  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • C-Face no base
  • Automatic Thermal protection

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Nameplate - 60 HZ

Hertz 60   HP 1 1/2
KW 1.12   RPM 1800
FL Eff 86.5   Volts 460
FL Amps 2.3   SF 1.0
Nameplate - 50 HZ

Hertz 50   HP 1 1/2
KW 1.12   RPM 1500
FL Eff 85.5   Volts 380
FL Amps 2.7   SF 1.0
Motor Wt. 44 LB   UL Q-LI,ME-INS,AUTO PRT LOCK AND RUN UL REC ST UL REC
CE Y   CSA Y
Phase 3   Insulation Class B
Frame Size 56C   Enclosure TEFC
Ambient 40   Mount Type C-Face Footless
Therm.Prot. Automatic Protector   Orientation SHAFT DOWN
Nema Design A   Assembly F3
Starting Method ACROSS THE LINE   PE Bearing Type BALL
KVA Code P   OPE Bearing Type BALL
IP Code 43   Drive End Bearing Size 6205
Opposite End Bearing Size 6203

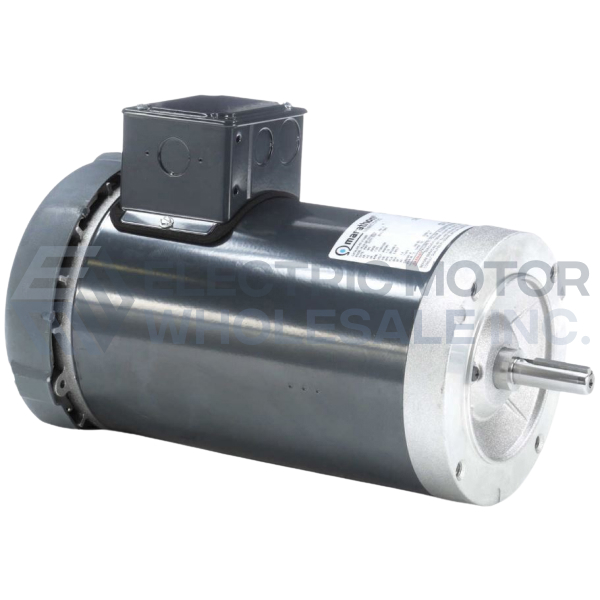

1.5HP MARATHON 1800RPM 56C TEFC 460V 3PH MOTOR K1438B
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: K1438B
Stock # K1438B
