1/3HP MARATHON 1725RPM 56 115V EPFC 1PH MOTOR K037

Catalog Number:  K037
Model Number:  056C17G5308
Description:  1/3HP,1725RPM,56,115V,EPFC,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  29 lbs.

APPLICATIONS: Designed and approved for applications in hazardous environments having certain explosive gases or materials present.

FEATURES:

  • Automatic reset thermal protector
  • Capacitor Start Induction Run design
  • Hazardous Duty Divison 1, Class I and II, Groups D, F, & G
  • Steel frame and resilient base
  • 1-1/2” Thru-bolts, shaft end
  • 1.0 Service Factor
  • Meets temperature code T3B
  • Explosion proof conduit box included, shipped loose
  • UL Listed File No. E12044
  • CSA Certified File No. LR47504
  • Footnotes: 2,37

Note: Please reference the "Explosion Proof Information" file under the Files tab for more information about Explosion Proof Divisions, Classes, and Groups.

Phase 1 Insulation Class B
Frame 56 Duty CONTINUOUS
Enclosure EPFC Ambient 40
Mounting Resilient Base - Extended Studs NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code N
Drive End Bearing BALL IP Code 54
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203 Hazardous Location EXP PROOF CL I GR D CL II GR F&G T3B
Weight 29 LB lbs
CE N CSA N
UL UL Listed
Thermal Protection Automatic Protector

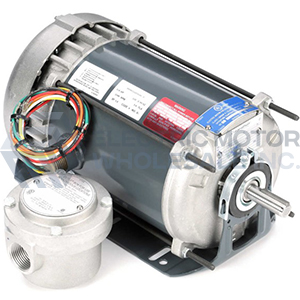

1/3HP MARATHON 1725RPM 56 115V EPFC 1PH MOTOR K037
