1/3HP MARATHON 3600RPM 56J DP 115/208-230V 1PH MOTOR J054

Catalog Number: J054
Model Number: 056C34D2118
Description: 1/3HP,3600RPM,56J,115/208-230V,DP,1PH,60HZ
Design:  CAPACITOR START
Ship Weight:  15 lbs.

FEATURES:

  • C-Face Footed
  • Split Phase design
  • Double sealed ball bearings, mechanically locked on shaft end
  • 1.75 Service Factor
  • Capacitor start design for high starting torque
  • Automatic reset thermal protector
  • 56J = 416 stainless steel threaded shaft with slinger
  • Drip cover included
  • UL Recognized and CSA Certified
  • Footnotes: 3

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 1 Insulation Class B
Frame 56J Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design DEFINITE DUTY
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation FIXED CW
Opposite End Bearing Size 6203
Weight 15 LB lbs
CE Y CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector

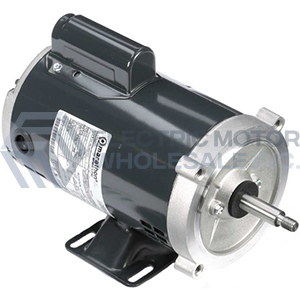

1/3HP MARATHON 3600RPM 56J DP 115/208-230V 1PH MOTOR J054
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: J054
Stock # J054
Price: $123.00
Compare At: $282.00
