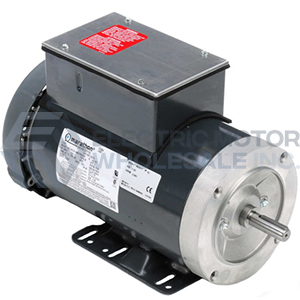

2HP MARATHON 1800RPM 145TC 115/230V TEFC 1PH MOTOR I311
|Ship Weight:||52 lbs.|
This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.
APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.
- C-Face Footed (Rigid Base)
- Manual overload protection
- Capacitor Start/Capacitor Run design for reduced amperage
- Ball bearings
- Will accept C-Face kit
- Heavy gauge steel construction
- 56H, 143T, and 145T Combination Base with 12 mounting holes
- 1.15 Service Factor
- UL Recognized and CSA Certified
- Footnotes: 1, 2, 5,14,18
|Mounting||C-Face Rigid||NEMA Design||L|
|Orientation||HORIZONTAL||Starting Type||CAP START CAP RUN|
|Drive End Bearing||BALL||IP Code||43|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6205||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||52 LB lbs|
|Thermal Protection||Manual Protector|
